Rotary Evaporator With Vacuum Pump And Chiller
2.Excellent air tightness, High vacuum performance.
3.PTFE and Viton double sealing.
4.Easy assembling design to be assembled.
5.Double layer cooling coils for improving condensers performance.
6.Supports OEM and ODM.
7.CE, ISO, UL, SGS certification.
8.1 year warranty and quality commitment.
9. PLC fully automatic is optional.
10.Explosion-proof system is optional.
Rotary Evaporator With Vacuum Pump And Chiller - Complete Laboratory Distillation Solution
Our Rotary Evaporator With Vacuum Pump And Chiller conveys an coordinates turnkey arrangement for your dissolvable expulsion, concentration, and decontamination needs. This all-in-one framework combines accuracy designing with user-friendly operation. Not at all like standalone evaporators, this coordinates setup disposes of component bungling issues whereas guaranteeing ideal execution. You get thermodynamic optimization where each component works in culminate harmony.
Why Choose Our Integrated Distillation System?
You confront day by day challenges in your research facility. Warm corruption of touchy compounds. Wasteful dissolvable recuperation. Component compatibility issues. Our coordinates framework addresses these torment focuses directly.
The pivoting surface maximizes warm exchange effectiveness. The chemical-resistant vacuum pump keeps up steady weight control. The high-capacity chiller guarantees prompt condensation for predominant dissolvable recuperation rates. This bundled approach avoids the disappointment of bungled components that torment numerous research facilities.
Key Benefits for Your Laboratory
Enhanced Safety Profile
- Low-temperature operation protects heat-sensitive materials
- Overheating protection prevents equipment damage
- Earth leakage protection ensures operator safety
- Dry heating protection extends equipment life
Superior Performance
- Achieves over 95% solvent recovery rates
- Processes up to 11L/h of 75% alcohol
- Ultimate vacuum reaches 9mbar for efficient distillation
- Double-layer cooling coils improve condensation efficiency
Operational Excellence
- Whole machine shock absorption reduces noise
- Easy disassembly simplifies maintenance
- Motorized lifting with 253mm stroke enhances convenience
- LED displays provide clear operational visibility
Technical Specifications
| Parameter | Specification |
|---|---|
| Evaporating Flask Volume | 50L |
| Speed Range | 20-130 rpm |
| Evaporation Capacity (Max) | 11L/h (75% Alcohol) |
| Ultimate Vacuum | 9mbar |
| Temperature Range | Water Bath: 20-100℃, Oil Bath: 20-180℃ |
| Temperature Control Accuracy | ±1℃ |
| Heating Power | 5000W |
| Lifting Stroke | 253mm |
| Timer Range | 0-999min |
| Motor Type | Brushless DC motor |
| Dimensions (D×W×H) | 1030×510×1370mm |
| Protection Class | IP20 |
| Certifications | CE, ISO, UL, SGS |
Diverse Application Portfolio
Pharmaceutical Research
Your API synthesis requires precise temperature control. The vacuum system prevents thermal decomposition of sensitive compounds. The chiller maintains strict condenser temperatures for regulatory compliance.
Cannabis and Hemp Processing
Post-winterization ethanol recovery becomes efficient and cost-effective. Low-temperature operation preserves valuable terpenes and cannabinoids. High-capacity solvent recovery reduces operational costs significantly.
Material Science Applications
Nanoparticle solvent removal requires steady vacuum equilibrium. The integrated design prevents bumping or foaming that could damage complex nanostructures.
Academic Research Institutions
Versatile enough for various research projects. Compatible with all standard glassware ranges. Meets international laboratory safety standards.
Quality Assurance and Standards
We maintain rigorous quality control throughout manufacturing with a Rotary Evaporator With Vacuum Pump And Chiller. Every unit undergoes comprehensive testing including vacuum leak rate verification and cooling capacity validation. Our 20 years of laboratory rotary evaporator manufacturing experience ensures reliability you can trust.
International Compliance
- CE certification for European markets
- ISO quality management standards
- UL safety certifications
- ETL electrical testing compliance
Performance Validation
- Vacuum leak rate testing ensures system integrity
- Cooling capacity verification matches operational requirements
- Motor longevity testing confirms durability
- Glassware stress analysis prevents safety issues
Service and Support Excellence
Immediate Response
- 24-hour customer service availability
- 12-month comprehensive warranty coverage
- Complete installation documentation provided
- 12-hour video installation guidance
Flexible Delivery Options
- In-stock availability for immediate shipping
- Integrated transportation via sea, land, air, or express
- Fast and convenient delivery worldwide
- Our rotary evaporator for sale
Customization Capabilities
We understand different markets have unique requirements. Our ODM/OEM of Rotary Evaporator services adapt equipment to specific regional needs and customer specifications. Whether you need voltage modifications or specialized configurations, we deliver tailored solutions.
Advanced Features and Options
Standard Excellence
- PTFE and Viton double sealing system
- Excellent air tightness for consistent vacuum
- Teflon-coated heat bath for chemical resistance
- Brushless DC motor for reliable operation
Optional Upgrades
- PLC fully automatic control system
- Explosion-proof safety system
- Oil bath heating option for higher temperatures
- Custom voltage and frequency specifications
- We are a professional rotary evaporator supplier, rotary evaporator manufacturers

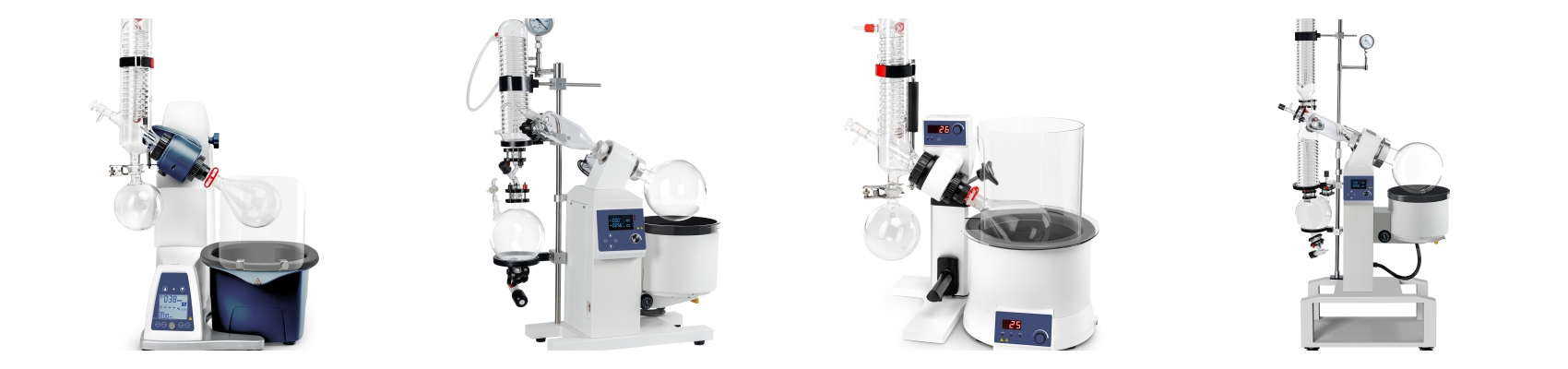

- We have 5L Rotary Evaporator,Digital Rotary Evaporator,10L Rotary Evaporator,20L Rotary Evaporator
Your laboratory deserves equipment that enhances productivity while ensuring safety. Our product represents two decades of engineering excellence and customer feedback integration.
Contact Us
Ready to upgrade your laboratory capabilities? Contact our technical team at info@winlinklab.com for detailed specifications and customization options. We'll help you select the perfect configuration for your specific applications with the Rotary Evaporator With Vacuum Pump And Chiller and ensure seamless integration into your workflow.
