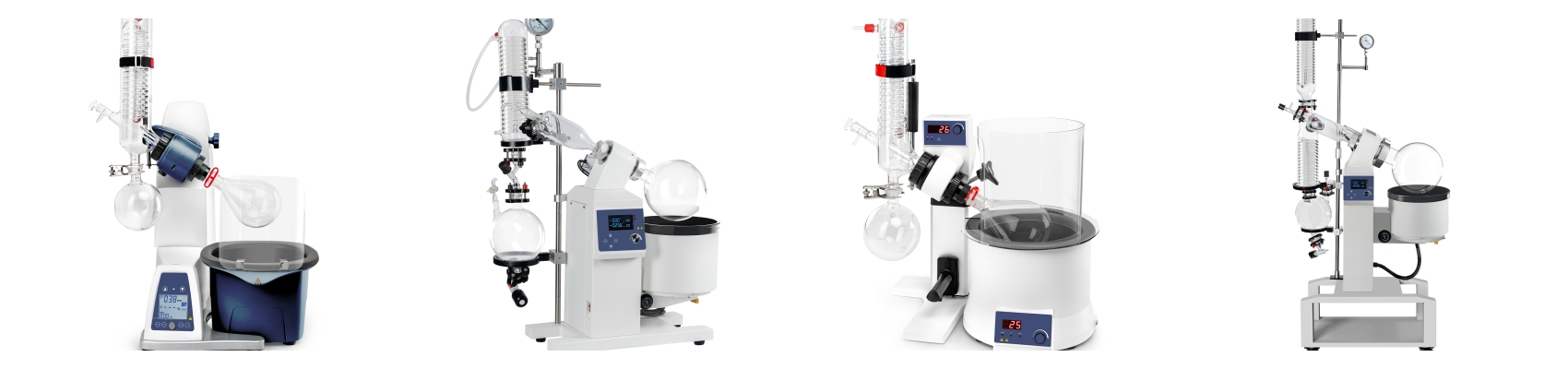

Our professional-grade 20L Rotary Evaporator works very well for removing solvents on a small scale and concentrating samples. This system meets the highest safety standards and can handle your most difficult tasks thanks to its advanced engineering and precise controls. Our equipment makes sure that you always get the same results, whether you work in drug development, chemical synthesis, or study institutions.
Our system combines the main unit, heating system, cooling components, and vacuum pump into one cohesive package. This integrated approach eliminates compatibility issues and streamlines your workflow.
The excellent air-tight design features PTFE and Viton double sealing technology. This ensures optimal vacuum levels below 2.6mbar for efficient solvent recovery.
The easy-assembly design means you can set up quickly and start working immediately. The intuitive LCD display shows all critical parameters at a glance.
| Parameter | Specification |
|---|---|
| Temperature Range | Room temperature to 180°C (water and oil bath) |
| Temperature Control Accuracy | Water: ±1℃, Oil: ±3℃ |
| Rotation Speed | 10-150 RPM |
| Ultimate Vacuum | Less than 2.6mbar |
| Evaporation Capacity | Maximum 4.5L/h (75% Alcohol) |
| Temperature Control | Microprocessor PID control |
| Display | LCD (temperature/speed/rotation direction/time) |
| Time Setting Range | 0-999 minutes |
| Lift Stroke | Motorized 180mm |
| Evaporation Flask | Round flask 20L |
| Receiving Flask | Round flask 10L with drain valve |
| Condenser | Two-section vertical triple coil, cooling surface 1.2m² |
| Heating Bath Size | ∅450×240mm |
| Hose Connection | 16mm outer diameter for cooling and vacuum |
Your laboratory safety is our top priority. The unit includes comprehensive protection systems:
These built-in safeguards give you peace of mind during extended operations.
The chemical-resistant construction withstands aggressive solvents and frequent use. This 20L Rotary Evaporator maintains performance even under demanding conditions.
Our shock absorption and noise reduction technology creates a quieter laboratory environment. Your team can focus on important work without distraction.
The simple disassembly design makes cleaning and maintenance straightforward. You'll spend less time on upkeep and more time on research.
The system works with all standard glassware ranges. You can use existing laboratory equipment without additional purchases.
WIN LINK STAR TECHNOLOGY brings 20 years of manufacturing experience to every unit. Our products meet international standards including CE, ISO, UL, and SGS certifications.
We offer integrated transportation options including sea, land, air, and express delivery. Our ready-to-ship inventory ensures fast delivery to your location.
Need specific modifications for your application? We provide ODM and OEM services tailored to different countries and customer requirements. Optional features include:
As a comprehensive laboratory equipment supplier with our own factory, we control every aspect of quality and delivery. Our complete independent supply system means faster turnaround times and better prices.
We serve research institutions, universities, and enterprise R&D departments worldwide. Our one-stop customized solutions cover everything from initial design to installation and ongoing maintenance.
Ready to upgrade your laboratory capabilities? Contact us today at info@winlinklab.com to discuss your specific requirements. Our technical team will help you select the perfect 20L Rotary Evaporator configuration for your applications.
Experience the difference that 20 years of expertise makes in laboratory equipment manufacturing.
