Vacuum Candy Oven
2.Temperature Uniformity: within 4% of the temperature setpoint.
3.Heat-Up Time: 20 minutes.
4.Ultimate Vacuum: <500 µmHg / mTorr / micron.
5.Supports OEM and ODM.
6.CE, ISO, UL, SGS certification.
7.1 year warranty and quality commitment.
Vacuum Candy Oven - Professional Laboratory Equipment for Precise Thermal Processing
Our professional-grade gear from WIN Link STAR Technology combines 20 a long time of fabricating mastery with cutting-edge warm innovation. This specialized unit works beneath decreased climatic weight, permitting you to handle heat-sensitive materials at lower temperatures while accomplishing predominant comes about. Whether you're working with confectionery applications, pharmaceutical extricates, or electronic components, this Vacuum Candy Oven guarantees exact dampness evacuation without warm corruption. Our gear meets worldwide CE, ISO, UL, and SGS benchmarks, giving you certainty in each application.
Why Choose Our Advanced Vacuum Heating Solution?
Our vacuum warming innovation revolutionizes your research facility forms by making controlled low-pressure situations. You can presently accomplish dampness levels as moo as 1-3% without uncovering your tests to over the top heat.
The dual-layer tempered glass entryway gives crystal-clear perception of your tests all through the whole handle. You'll appreciate the built-in Driven lighting framework with 4 shinning strips that light up your chamber perfectly.
Superior Temperature Control

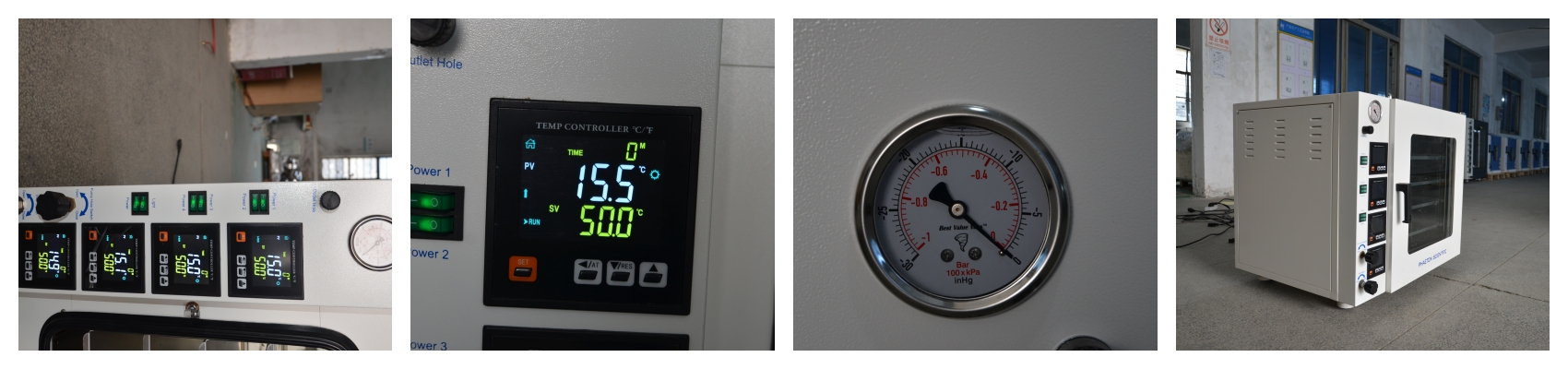

Temperature soundness comes to an amazing ±1°C precision. The PID temperature controller with computerized show appears both measured and set temperatures at the same time. You can screen your handle with certainty, knowing that temperature consistency remains inside 4% of your setpoint.
Heat-up time takes fair 20 minutes, sparing profitable research facility time. The extreme vacuum comes to underneath 500 µmHg, guaranteeing ideal preparing conditions for your most requesting applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | RT～150°C (RT～300°F) |
| Temperature Fluctuation | ±1°C |
| Temperature Resolution | 0.1°C |
| Vacuum Level | ≤133Pa |
| Timing Range | 1～9999min |
| Power Requirement | AC110V 60HZ (US standard plug) |
| Power Consumption | 1750W |
| Chamber Dimensions | 560×600×640mm (W×D×H) |
| Overall Dimensions | 880×810×880mm (W×D×H) |
| Chamber Volume | 210L |
| Standard Shelves | 5pcs (heated, fixed) |
| Shelf Capacity | 15kg per shelf |
| Vacuum Reading | Mechanical pressure gauge |
| Safety Features | Leakage protector, overheating alarm |
Key Advantages That Set Us Apart

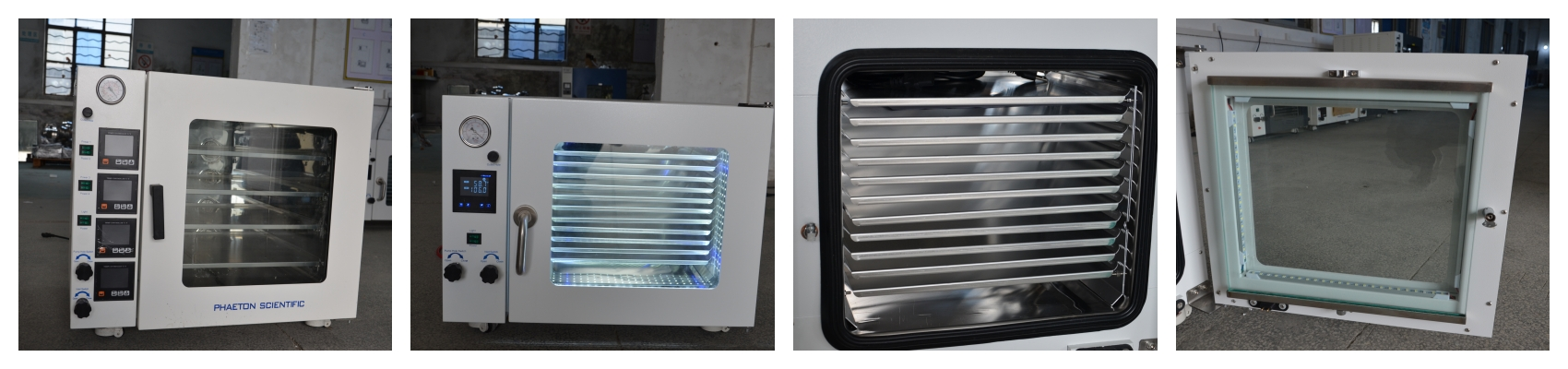

Improved Chamber Plan: The chamber employments premium 304 stainless steel development. The outside body highlights high-quality cold-rolled steel for solidness and longevity.
Flexible Gas Administration: Your unit incorporates a KF25 discuss extraction opening and 10mm idle gas channel. You can fill nitrogen or other inactive gasses when your tests require defensive atmospheres.
Precision Checking: The mechanical weight gage conveys exact vacuum readings. Our vacuum oil gage stands up to vibration successfully, guaranteeing reliable measurements.
Proven Unwavering quality: Each unit experiences plant testing beneath vacuum conditions for over 24 hours. This thorough quality control guarantees your hardware performs immaculately from day one.
Durable Equipment: Stainless steel entryway handles give long-lasting operation. Each component is planned for visit research facility use.
Applications Across Industries
Electronic Fabricating: Idealize for semiconductor handling, PCB heating, and component degassing. The vacuum environment anticipates oxidation and dispenses with bubbles in preparing compounds.
Pharmaceutical Investigate: Perfect for drying thermosensitive compounds and cleansing leftover solvents. You can protect unstable compounds that would debase beneath standard warm conditions.
Materials Science: Great for polymer curing, composite fabricating, and progressed fabric preparing where controlled climates are essential.
Quality Control: Bolsters dampness examination, steadiness testing, and contamination-free drying methods in expository research facilities.
Our Commitment to Excellence
WIN LINK STAR TECHNOLOGY brings you two decades of manufacturing experience in laboratory equipment. We maintain complete quality control from our own factory, ensuring every Vacuum Candy Oven meets stringent international standards.
Fast Delivery: Ready-to-ship inventory means quick delivery to your laboratory. Our integrated transportation network supports sea, land, air, and express shipping options.
Customization Options: We offer ODM and OEM services tailored to different countries and customer requirements. Your specific needs drive our engineering solutions.
Comprehensive Support: You receive 24-hour response service with 12-month warranty coverage. Our team provides complete installation documentation plus video guidance within 12 hours of your request.
Global Compliance: All equipment carries CE, ISO, UL, and ETL certifications, ensuring compatibility with international laboratory standards.
Contact Us Today
Ready to enhance your laboratory capabilities with professional vacuum heating technology? Our technical team stands ready to help you select the perfect configuration for your applications.
Contact our experts at info@winlinklab.com for detailed specifications, custom configurations, or technical consultation. We'll help you optimize your processes with our proven Vacuum Candy Oven technology.
