Your investment is protected by comprehensive quality standards and certifications with Centrifugal Spray Dryer. Our equipment complies with CE, ISO, UL, and SGS international standards, ensuring safe and reliable operation in any laboratory environment.
Centrifugal Spray Dryer
1.High speed of drying
2.Suitable for drying the heat sensitive materials
3.Easy control and operation
4.Good adjustability
5.Supports OEM and ODM.
6.CE, ISO, UL, SGS certification.
7.1 year warranty and quality commitment.
8. PLC fully automatic.
9.Explosion-proof system is optional.
2.Suitable for drying the heat sensitive materials
3.Easy control and operation
4.Good adjustability
5.Supports OEM and ODM.
6.CE, ISO, UL, SGS certification.
7.1 year warranty and quality commitment.
8. PLC fully automatic.
9.Explosion-proof system is optional.

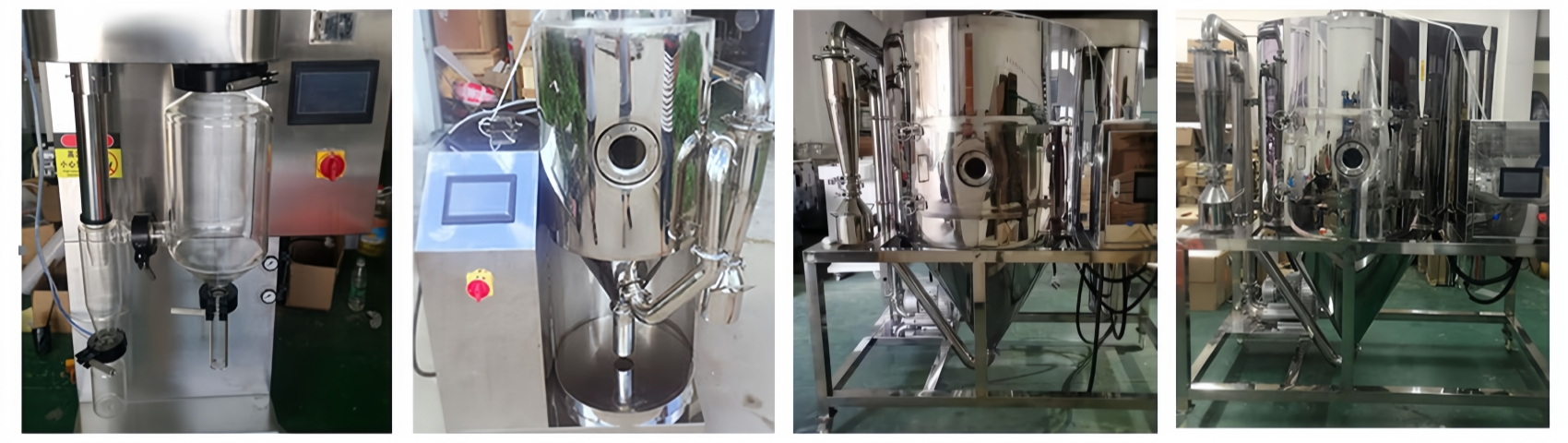

Advanced Centrifugal Spray Dryer - Professional Laboratory Drying Solutions
Transform Liquids to High-Quality Powder with Precision Drying Technology
Our Centrifugal Spray Dryer conveys remarkable execution for research facilities and inquire about offices around the world. This progressed hardware employments cutting-edge centrifugal atomization innovation to change arrangements, emulsions, and suspensions into uniform powder particles. With over 20 a long time of fabricating encounter, WIN Interface STAR Innovation gives you with professional-grade splash drying gear that meets worldwide quality standards.
Whether you work in pharmaceuticals, nourishment preparing, or chemical inquire about, this flexible drying framework offers the accuracy and unwavering quality you require for steady results.
How Our Spray Drying System Works?
Our gear works through a modern handle that guarantees ideal powder quality. The centrifugal atomizer turns at tall speeds, making fine beads from your fluid bolster fabric. These beads experience hot discuss streams in the drying chamber, causing quick dampness evaporation.
The centrifugal drive produced by the turning circle kills clogging issues common with other drying strategies. This plan permits you to prepare higher thickness materials without visit upkeep interferences. Your last item rises as free-flowing powder with fabulous solvency and dispersibility characteristics.
Temperature control frameworks keep up exact conditions all through the drying handle. This cautious temperature administration secures heat-sensitive materials from warm debasement whereas guaranteeing total dampness evacuation.
Key Features and Advantages
High-Speed Drying Performance
- Complete drying cycles in just 1.0-1.5 seconds
- Maximum capacity of 5000 ml/h for efficient production
- Moisture evaporation up to 5 kg/h
Superior Temperature Control
- Inlet air temperature range: 40℃ to 300℃
- Outlet air temperature: 80℃ to 90℃
- Precision accuracy of ± 1℃ for consistent results
User-Friendly Operation
- PLC control system with intuitive touch screen interface
- Fully automatic operation reduces manual intervention
- Easy adjustment of processing parameters
Versatile Applications
- Perfect for heat-sensitive pharmaceutical compounds
- Ideal for food ingredient processing
- Suitable for chemical and ceramic material drying
- Compatible with various liquid feed types
-
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Capacity | 5000 ml/h |
| Inlet Air Temperature | 40℃ - 300℃ |
| Outlet Air Temperature | 80℃ - 90℃ |
| Temperature Precision | ± 1℃ |
| Spray System | Centrifugal nozzle |
| Drying Time | 1.0 - 1.5 seconds |
| Pump Speed | 5000 ml/h |
| Moisture Evaporation | Up to 5 kg/h |
| Material Contact | Stainless steel construction |
| Heater Power | 3KW 220V |
| Control System | PLC with touch screen |
| Applications | Chemicals, Plastics, Food Processing |
Quality Assurance and Certifications
Every unit undergoes rigorous factory testing before shipment. We verify atomizer vibration levels, chamber air-tightness, and temperature control accuracy to guarantee optimal performance upon installation.
Comprehensive Support Services
Fast Delivery and Installation
- Ready stock available for immediate shipment
- Integrated transportation options: sea, land, air, and express delivery
- Professional installation guidance within 12 hours
Customization Capabilities
- ODM and OEM services available
- Machine size customization within specified ranges
- Adaptation to different country requirements and customer specifications
Reliable After-Sales Support
- 24-hour responsive customer service
- 12-month comprehensive warranty coverage
- Video installation guidance and technical support
- Complete system documentation provided

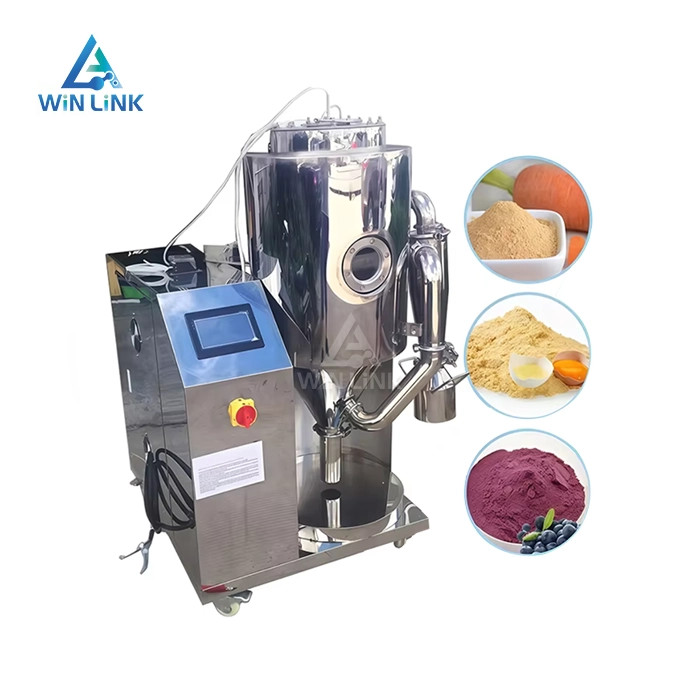

- We can also provide Lab Scale Spray Dryer, 10L Spray Dryer,industrial spray dryer manufacturer,Egg Powder Processing Spray Dryer.
Why Choose WIN LINK STAR TECHNOLOGY?
With two decades of fabricating ability, we get it the basic necessities of research facility drying applications. Our item speaks to the perfection of a long time of investigate and advancement in powder preparing technology.
We keep up total free supply frameworks and work our possess fabricating office. This vertical integration permits us to control quality at each generation arrange whereas advertising competitive estimating for our customers.
Our one-stop arrangement approach covers everything from beginning discussion and gear choice to establishment, commissioning, and continuous upkeep bolster. This comprehensive benefit show makes a difference you accomplish greatest return on your hardware speculation. We are a professional spray dryer manufacturers,spray dryer supplier.
Get Started Today
Ready to enhance your laboratory's powder processing capabilities? Our technical team is standing by to discuss your specific requirements and recommend the optimal spray drying configuration for your applications.
Contact us today at info@winlinklab.com to learn more about our Centrifugal Spray Dryer and discover how this advanced technology can improve your research efficiency and product quality.
