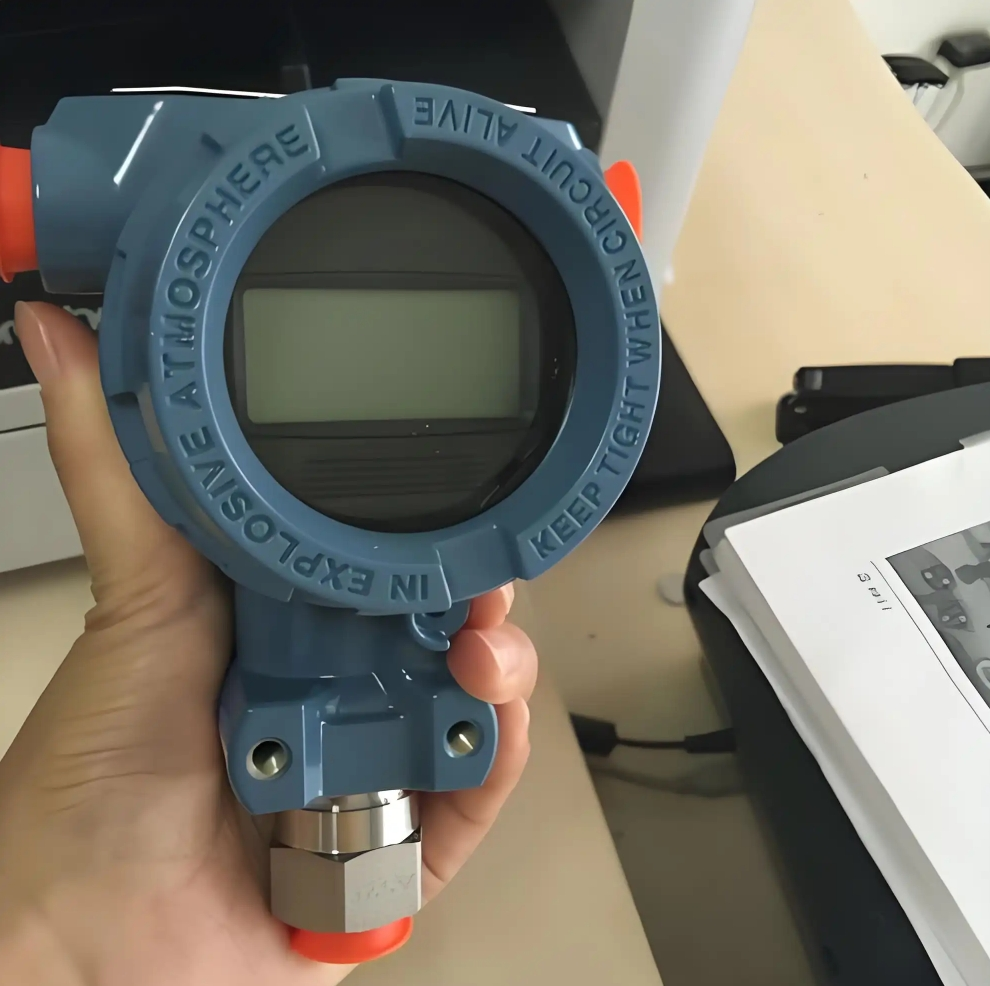

Rosemount 3051TG Direct Connection Pressure Transmitter
2. The application-specific configuration enables you to transform the pressure transmitter into a level transmitter with volume calculation function.
3. All pressure or liquid level components have undergone leakage testing and calibration, which can reduce leakage points by 70% and simplify installation.
4. With a 10-year stability and a 1500:1 range ratio, it can provide reliable measurement values and wide application flexibility.
5. The Quick Service button is equipped with built-in configuration buttons, which can simplify the debugging process.
6. SIL 2/3 certification, in compliance with IEC 61508 (certified by a third party) and prior certificates of FMEDA data for safe installation.
Rosemount 3051TG Direct Connection Pressure Transmitter: High-Performance Pressure Measurement Solution for Critical Industrial Applications
The Rosemount 3051TG Direct Connection Pressure Transmitter is the most accurate and stable device on the market for measuring pressure in harsh industrial settings. This is the best inline gauge pressure measuring tool on the market. It has a direct-mount threaded sensor design that gets rid of the need for complicated mounting systems. You will like how strong it is; it can take pressures of up to 1,378.95 bar (20,000 psi) and still work great over time. The transmitter's advanced SaturnTM sensing technology makes sure that readings are always the same, even when the process conditions change. This makes it a great choice for use in manufacturing, chemical processing, oil and gas, and other fields.
Product Overview
The 3051TG is different from other coplanar designs because it uses a straight connection method that is easier to understand. Standard 1/2–14 NPT threads let you connect the sensor straight to your process line. This gets rid of possible leak points and makes fitting easier.
The transmitter turns regular tracking of pressure into smart ways to measure things. It can be changed into a level transmitter with volume calculation skills thanks to its application-specific configuration. All of the parts are carefully checked for leaks and calibrated, which cuts the number of possible failure points by 70%.
You can use this transmitter in safety-critical situations because it has SIL 2/3 approval that meets IEC 61508 standards. The built-in Quick Service button makes setting up and fixing problems in the field easier, which saves time that could be used for maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Accuracy | ±0.04% of span (Reference) |
| Total Performance | ±0.14% of span |
| Pressure Range | 0.3 psi to 20,000 psi (0.02 to 1,378.95 bar) |
| Turn-Down Ratio | 150:1 |
| Stability | 10 years installed |
| Process Connection | 1/2-14 NPT (standard) |
| Wetted Materials | 316L Stainless Steel, Alloy C-276 |
| Output Signal | 4-20 mA HART, WirelessHART®, FOUNDATION™ Fieldbus |
| Housing Rating | NEMA 4X, IP66/68 |
| Process Temperature | -40 to 250°F (-40 to 121°C) |
| Power Supply | 10.5-55 VDC |
| Response Time | 90 ms (10-90%) |
| Vibration Resistance | 20g peak, 10-2000 Hz |
Industrial Applications
Oil & Gas Upstream Operations
Monitor wellhead weights in inaccessible areas where unwavering quality is vital. The transmitter's rough development withstands vibration and temperature extremes common in extraction environments.
High-Pressure Water powered Systems
Protect costly pump hardware by checking release weights up to 10,000 psi. Quick reaction times avoid expensive gear harm from weight surges.
Chemical Processing
Ensure handle security in destructive situations. The transmitter's progressed materials stand up to chemical assault whereas keeping up estimation accuracy.
Steam Dissemination Systems
Monitor steam header weights for ideal vitality effectiveness. Temperature-resistant plan handles high-temperature applications with suitable isolation.
Water Treatment Facilities
Track channel differential weights and pump execution. The transmitter's soundness decreases support prerequisites in persistent operation situations.
Packaging and Transportation
Our Siemens Pressure Transmitters 7MF4433/4033 are packaged with utmost care to ensure they reach you in pristine condition. Each unit is securely packed with protective materials to withstand the rigors of transportation. We utilize reliable logistics partners to ensure safe and timely delivery to your doorstep, anywhere in the world.
Contact Us
Ready to enhance your pressure measurement capabilities? Contact us at info@winlinklab.com to discuss your specific requirements. Our experts will help you select the optimal Rosemount 3051TG Direct Connection Pressure Transmitter configuration for your application.
