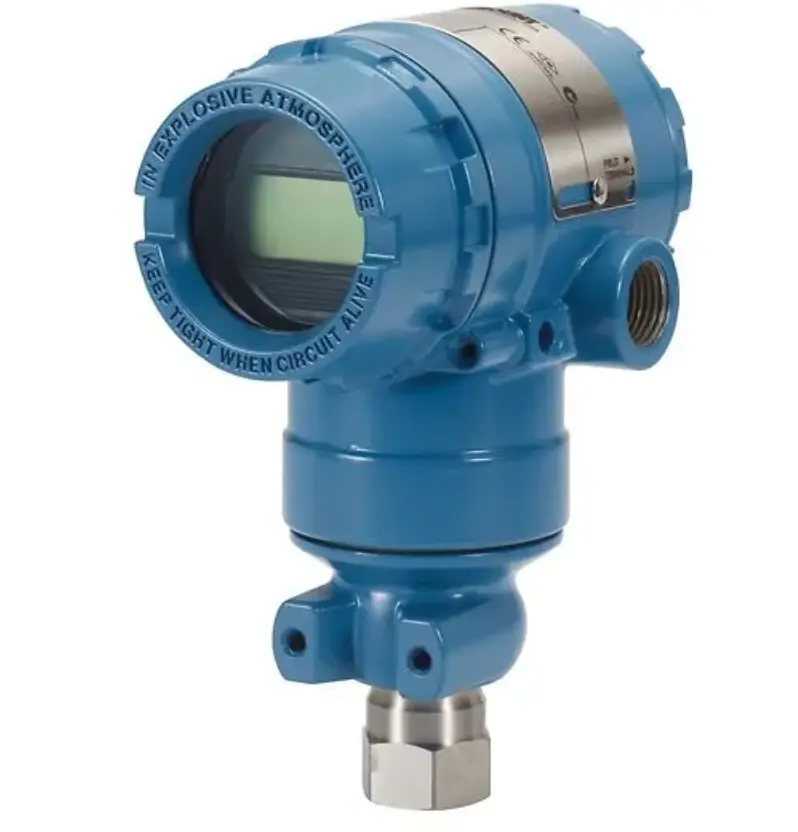

Rosemount 2051TA Direct Connection Pressure Transmitter
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification
Rosemount 2051TA Direct Connection Pressure Transmitter - Professional Industrial Pressure Measurement Solution
When you require exact outright weight estimation in requesting mechanical situations, the Rosemount 2051TA Direct Connection Pressure Transmitter conveys unmatched unwavering quality and execution. This progressed weight transmitter gives precise readings referenced against a idealize vacuum, making it perfect for vacuum refining, pharmaceutical freeze-drying, and chemical reactor applications. Not at all like conventional gage weight rebellious, this transmitter dispenses with climatic weight varieties that can influence estimation exactness. With its coordinate association plan, you can diminish establishment complexity and potential spill focuses whereas keeping up remarkable estimation precision.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Type | Absolute Pressure |
| Accuracy | ±0.075% of span (standard), ±0.065% (enhanced) |
| Pressure Range | 0.3 to 10,000 PSIA |
| Rangeability | 100:1 turndown ratio |
| Stability | ±0.10% URL for 3 years |
| Communication | 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® |
| Process Connection | 1/2-14 NPT female, G½ A DIN 16288 male |
| Wetted Materials | 316L SST, Alloy C-276 |
| Housing Rating | NEMA 4X/IP66 |
| Operating Temperature | -40 to 250°F (-40 to 121°C) |
| Certifications | SIL 2/3, NSF, NACE®, Hazardous location |
| Warranty | Up to 5 years limited warranty |
Product Specification
1. Limited warranty of up to 5 years.
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification.
Packaging and Transportation
Our Rosemount 2051TA are packaged with utmost care to ensure they reach you in pristine condition. Each unit is securely packed with protective materials to withstand the rigors of transportation. We utilize reliable logistics partners to ensure safe and timely delivery to your doorstep, anywhere in the world.
Get Expert Support Today
When you invest in the Rosemount 2051TA Direct Connection Pressure Transmitter, you're choosing proven technology backed by comprehensive support. Our technical experts are ready to help you select the right configuration for your application and provide ongoing support throughout the product lifecycle.
Contact our technical team at info@winlinklab.com for detailed specifications, pricing, and application guidance. We're committed to helping you achieve optimal measurement performance in your critical processes.
