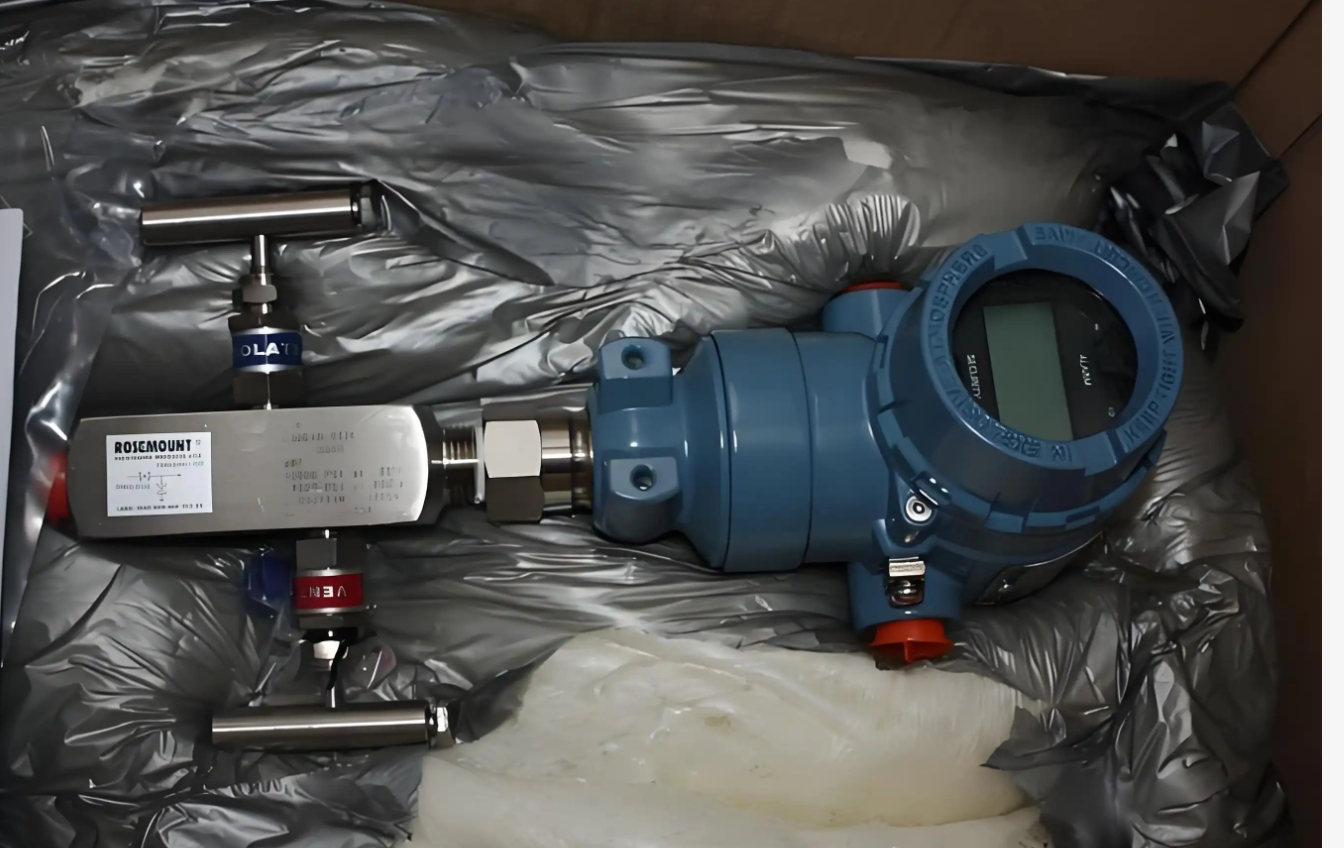

Rosemount 2051TG Pressure Transmitter
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification.
Rosemount 2051TG Pressure Transmitter - Professional Industrial Pressure Measurement Solution
The Rosemount 2051TG Pressure Transmitter conveys extraordinary execution with industry-leading precision and steadiness. This progressed in-line gage and supreme weight transmitter employments cutting-edge capacitive sensor innovation to give exact estimations in requesting situations. Whether you're observing wellhead weight, pump release, or reactor conditions, this transmitter offers the unwavering quality and adaptability your operations require. With its vigorous plan and comprehensive communication conventions, you can believe this gadget to provide reliable comes about over different mechanical sectors.
Product Overview
The 2051TG arrangement speaks to a breakthrough in weight estimation innovation. Built on Emerson's demonstrated Coplanar stage, this transmitter dispenses with common industry challenges like flag flimsiness and integration complexity.
You'll advantage from its direct-mount plan that diminishes establishment costs and potential spill focuses. The progressed sensor innovation guarantees steady readings indeed in high-vibration situations common around pumps and compressors.
The gadget consistently coordinating with present day IIoT biological systems through numerous communication alternatives. This adaptability makes it culminate for both bequest frameworks and unused mechanization ventures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | Gage: 0 to 10,000 psig (689.47 bar) |
| Absolute: 0 to 10,000 PSIA (689.47 bar) | |
| Reference Accuracy | ±0.065% of span (standard) |
| Long-term Stability | ±0.1% of URL for 3 years |
| Turndown Ratio | Up to 100:1 |
| Communication Protocols | 4-20mA HART®, WirelessHART® |
| FOUNDATION™ fieldbus, PROFIBUS® | |
| 1-5V low-power HART® | |
| Process Materials | 316L Stainless Steel, Alloy C-276 |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Overpressure Limit | Up to 2x maximum range |
| Warranty | Up to 5 years limited warranty |
| Safety Certification | SIL 2/3 per IEC 61508 |
Product Features:
1. Limited warranty of up to 5 years.
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification.
Applications Across Industries
Oil and Gas Operations
Monitor wellhead and casing pressure in upstream applications. The Rosemount 2051TG Pressure Transmitter handles extreme temperature variations and vibration associated with extraction equipment.
Water and Wastewater Treatment
Track pump discharge pressure to detect blockages or cavitation. High overpressure limits protect against water hammer shocks in distribution networks.
Chemical Processing
Control reactor pressure and storage tank blanketing systems. When equipped with Alloy C-276 wetted parts, it resists aggressive chemicals that would damage standard materials.
Power Generation
Measure steam and cooling water pressures in power plants. The device's stability ensures accurate readings for critical safety systems.
Food and Beverage
Monitor pressure in processing and packaging equipment. NSF certification ensures compliance with sanitary requirements.
Flexible Delivery Options
We maintain ready stock for immediate shipment. Our integrated transportation network includes sea, land, air, and express delivery options for convenient and fast shipping worldwide.
Getting Started
Ready to improve your pressure measurement capabilities? The Rosemount 2051TG Pressure Transmitter offers the perfect combination of accuracy, reliability, and value for your industrial applications.
Our technical team can help you select the right configuration for your specific needs. We'll work with you to ensure proper installation and optimal performance from day one.
Contact us today at info@winlinklab.com to discuss your pressure measurement requirements. Let us show you how this advanced transmitter can enhance your operational efficiency and reduce total cost of ownership.
