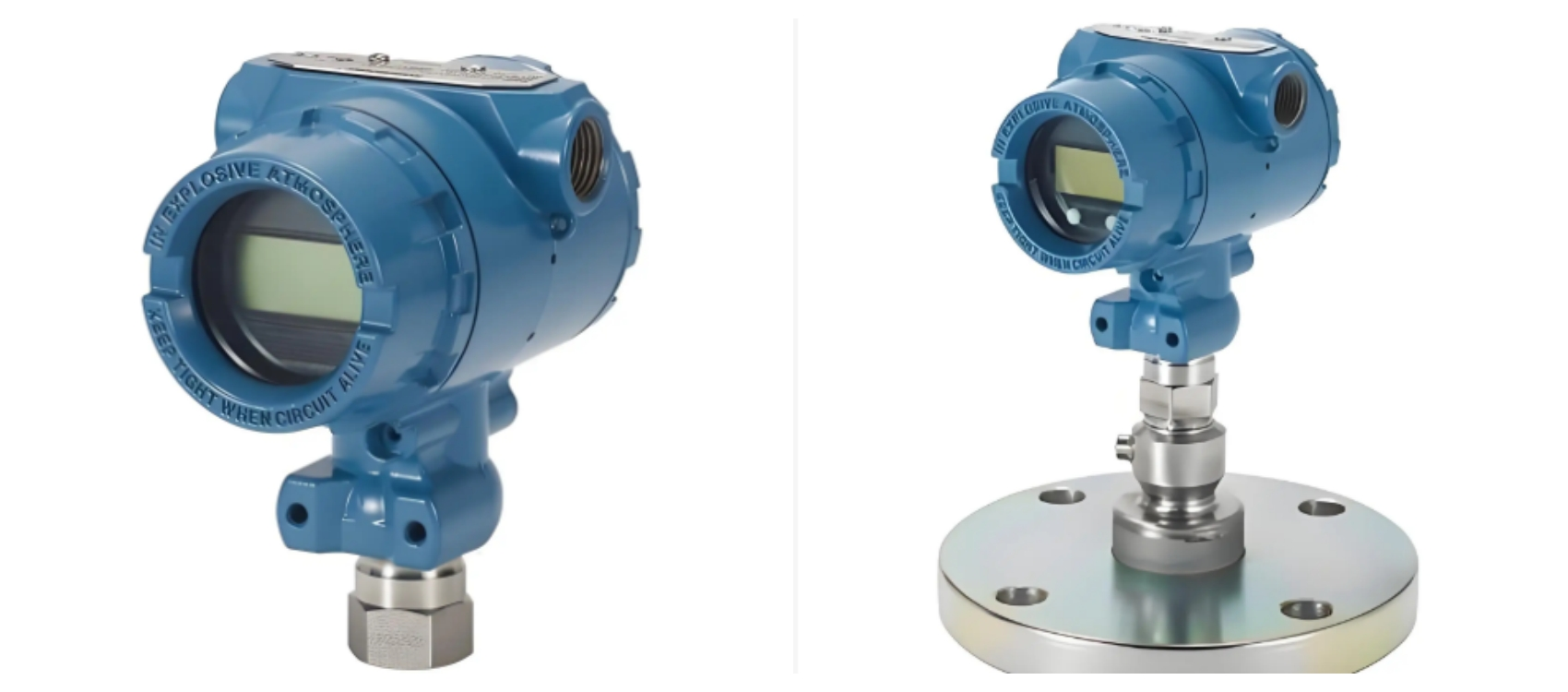

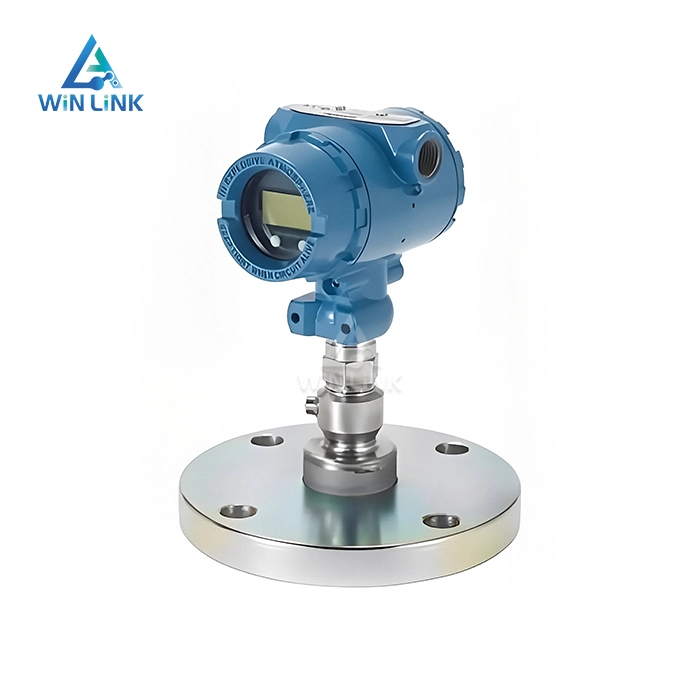

Rosemount 2088 Absolute Pressure Transmitters
2. Range ratio up to 50:1.
3. Communication protocol 4-20 mA HART®, 1-5 V low power HART®.
4. Measuring range Gauge pressure measurement up to 10,000psig (689.47bar), absolute pressure measurement up to 10,000psia (689.47bar).
5. Surface body liquid parts 316L SST, alloy C-276.
6. Diagnosis Basic diagnosis.
Rosemount Pressure Transmitter 2088 Product Overview:
1. Warranty Up to 5 years limited warranty.
2. Range ratio up to 50:1.
3. Communication protocol 4-20 mA HART®, 1-5 V low power HART®.
4. Measuring range Gauge pressure measurement up to 10,000psig (689.47bar), absolute pressure measurement up to 10,000psia (689.47bar).
5. Surface body liquid parts 316L SST, alloy C-276.
6. Diagnosis Basic diagnosis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference Accuracy | ±0.075% of span |
| Rangeability | 50:1 turndown ratio |
| Pressure Range | 0-30 psi up to 0-4,000 psi (275.8 bar) |
| Output Signal | 4-20 mA HART®, 1-5 V low power HART® |
| Wetted Materials | 316L SST, Alloy C-276 |
| Housing Rating | NEMA 4X (IP66) |
| Communication | HART® protocol compatible |
| Warranty | Up to 5 years limited warranty |
| Stability | <0.1% URL per year |
| Environmental | Dust and water ingress protection |
Product Features
1. The Field Operation Display Panel (LOI) is easy to use with intuitive menus and built-in configuration functions.
2. Factory-assembled and leak-tested integrated manifold and remote seal solutions enable quick start-up.
3. The applicable protocol includes 4-20mA HART and 1-5Vdc HART low power consumption, which can be flexibly applied.
4. Lightweight and compact design, easy to install.
Packaging and Shipping
The rosemount absolute pressure transmitter is securely packaged to withstand the rigors of international shipping. Each unit is carefully packed with protective materials to prevent damage during transit. Shaaxi ZYY ensures that all shipments are made in accordance with international shipping regulations and best practices.
Get Started Today
Ready to experience the reliability and accuracy of these Rosemount 2088 Absolute Pressure Transmitters? Our team stands ready to help you select the right configuration for your specific application.
Contact us at info@winlinklab.com for technical consultation and pricing. We'll work with you to ensure you get the optimal measurement solution for your critical processes.
Don't compromise on measurement accuracy. Choose proven performance with professional support that keeps your operations running smoothly.
