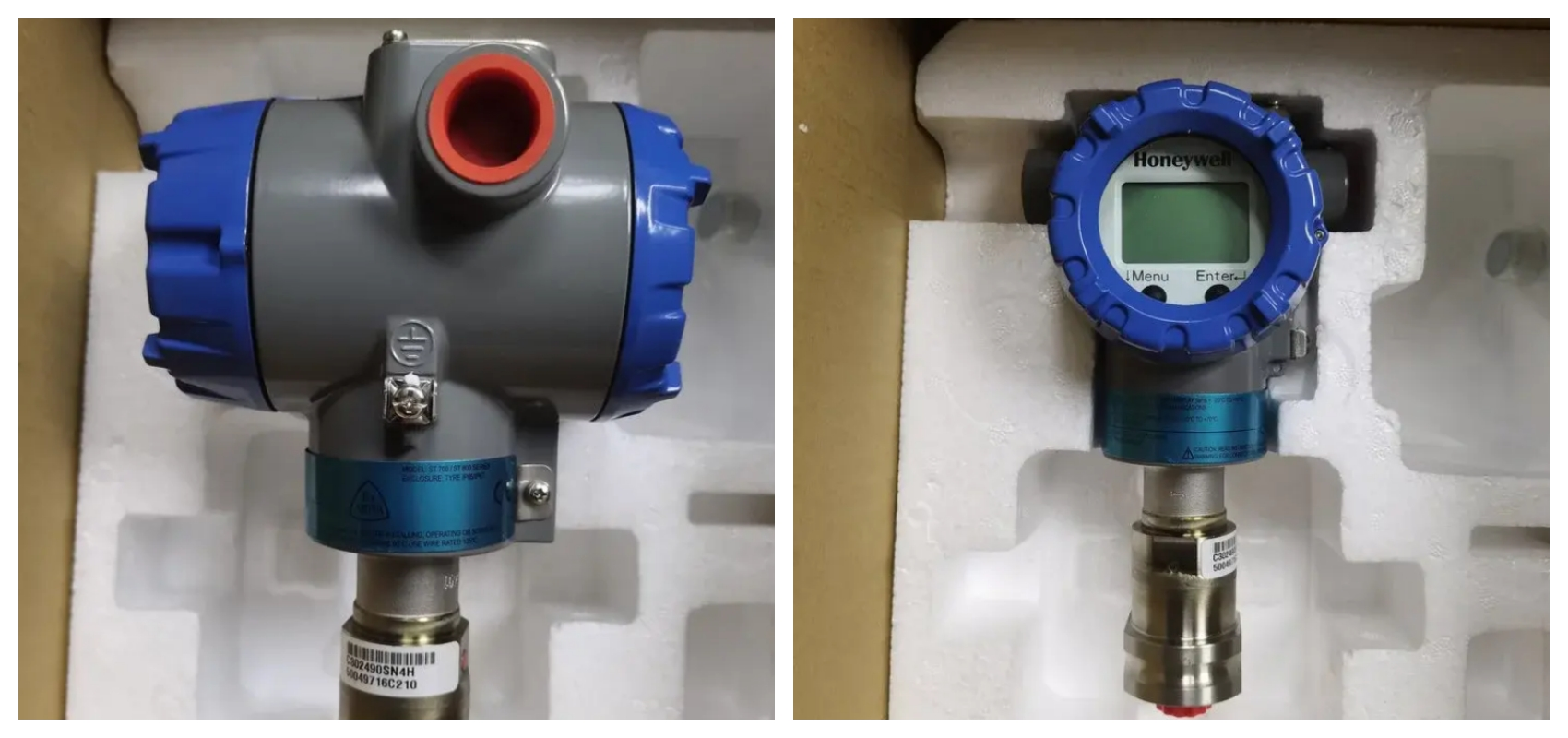

Honeywell ST800 Pressure Transmitter: Premium Industrial Pressure Measurement Solution

The Honeywell ST800 Pressure Transmitter represents the pinnacle of industrial pressure measurement technology within the SmartLine® family. As a premium-tier pressure transmitter engineered to replace and surpass legacy ST3000 series systems, this advanced device utilizes cutting-edge piezo-resistive sensor technology to deliver exceptional precision in critical industrial process control applications. The product addresses key industry challenges including thermal instability, inventory complexity, and safety integrity requirements across diverse industrial environments.

transmitter

Technical Specifications

Parameter	Specification
Maximum Accuracy	Up to 0.025%
Annual Stability	0.01% full scale (maintained for 15 years)
Turndown Ratio	Up to 400:1
Response Time	Up to 80ms
Static Pressure Rating	Up to 4500 psi
Operating Temperature	Up to 300°F (149°C) direct mount
Enclosure Rating	Type 4X/IP67
Safety Certification	SIL2/3 standard configuration
Warranty	Up to 15 years
Communication Protocols	HART 7, Foundation Fieldbus, Honeywell DE

Product Details: Honeywell ST800 Pressure Transmitter

1. Maximum accuracy up to 0.025%
2. Annual stability of up to 0.01%/ full scale, maintained for 15 years
3. Automatic static pressure and temperature compensation
4. Up to 100:1 range ratio
5. Response time up to 80ms
6. A variety of local display functions
7. External zero, range and configuration functions
8. Power supply polarity arbitrary connection
9. Perfect self-diagnosis function
Integrated dual seal design based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0 for safety
10. Standard configuration fully meets SIL2/3 requirements
11. Full module design
12. Up to 15 years warranty
13. Optional "PILD" advanced diagnostics
14. Optional two-range/three-range calibration (for HART and Foundation Fieldbus)

Packaging and Transportation:

Customized Packaging Options: We offer customized packaging solutions to protect the transmitter during transportation and storage.

Global Shipping Solutions: We have established shipping solutions to ensure timely and cost-effective delivery to any location worldwide.

transmitter

Get Your Quote Today

Ready to enhance your process control with the industry-leading Honeywell ST800 Pressure Transmitter? Our technical team is ready to help you select the optimal configuration for your specific application requirements.

Contact us at info@winlinklab.com to discuss your pressure measurement challenges and receive a customized solution proposal. Experience the reliability and precision that makes the ST800 the preferred choice for critical industrial applications worldwide.
