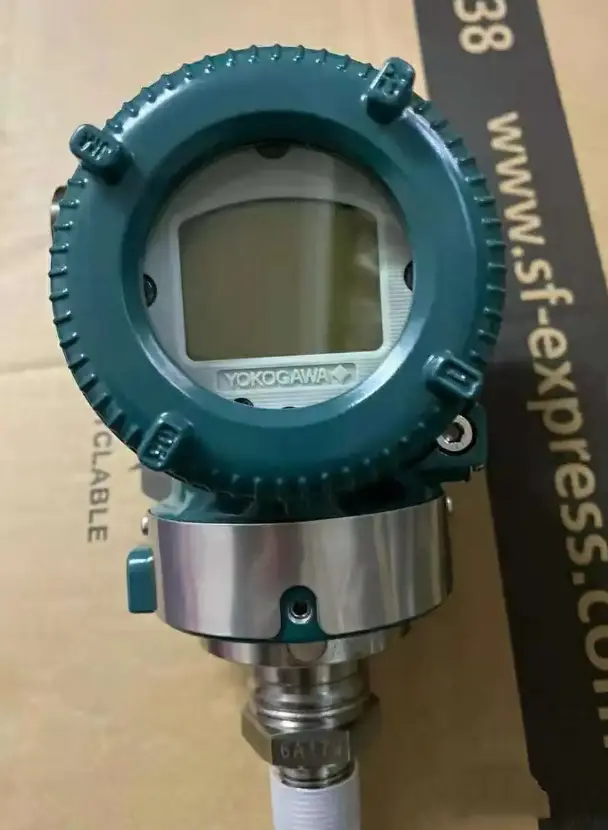

Yokogawa EJA510E Pressure Transmitter
The EJA510E converts the measured pressure into a 4-20mA DC current signal output and features functions such as rapid response, remote setting, and self-diagnosis.
Yokogawa EJA510E Pressure Transmitter
The EJA510E high-performance absolute pressure transmitter adopts single crystal silicon resonant sensor technology and is suitable for measuring the pressure of liquids, gases or steam. The EJA510E converts the measured pressure into a 4-20mA DC current signal output and features functions such as rapid response, remote setting, and self-diagnosis
Key Specifications and Features
| Parameter | Specification |
|---|---|
| Accuracy | ±0.055% of span (±0.04% optional) |
| Stability | ±0.1% URL per 10 years |
| Response Time | 90 milliseconds |
| Maximum Working Pressure | Up to 10,000 psi (depending on capsule) |
| Output Signals | 4-20mA DC with HART 7, FOUNDATION Fieldbus, PROFIBUS PA |
| Housing Protection | IP66/IP67, NEMA 4X |
| Safety Certification | SIL 2/SIL 3 (Exida certified) |
| Wetted Materials | 316L Stainless Steel (standard), Hastelloy C-276 (optional) |
| Temperature Compensation | Automatic via integrated temperature sensor |
Product Features:
Accuracy: ± 0.055% (optional accuracy: ± 0.04%).
2. Stability ± 0.2% URL/10 years.
3. Response time: 90 milliseconds.
4. TUV and Exida SIL2 / SIL3 certifications.
5. Maximum working pressure: 8,700 psi.
6. Local Parameter Settings (LPS).
7. It provides communication protocols such as HART 5/7, HART(1~5V DC) low-power type, FF fieldbus, PROFIBUS PA and BRAIN.
Packaging and Shipping:
The EJA510E is carefully packaged to ensure safe transportation. Each unit is securely enclosed in protective packaging material and is suitable for transport via various methods, including air, sea, and land, to reach our global customers safely and efficiently.
Get Your Pressure Transmitter Today
Ready to experience the precision and reliability of the Yokogawa EJA510E Pressure Transmitter? Our team of experts helps you select the right configuration for your specific application requirements. Contact us at info@winlinklab.com for detailed technical specifications, pricing information, and customization options.
Don't compromise on measurement accuracy for your critical processes. Trust the proven performance of this industry-leading pressure transmitter to deliver the reliable data you need for optimal process control and safety compliance.
