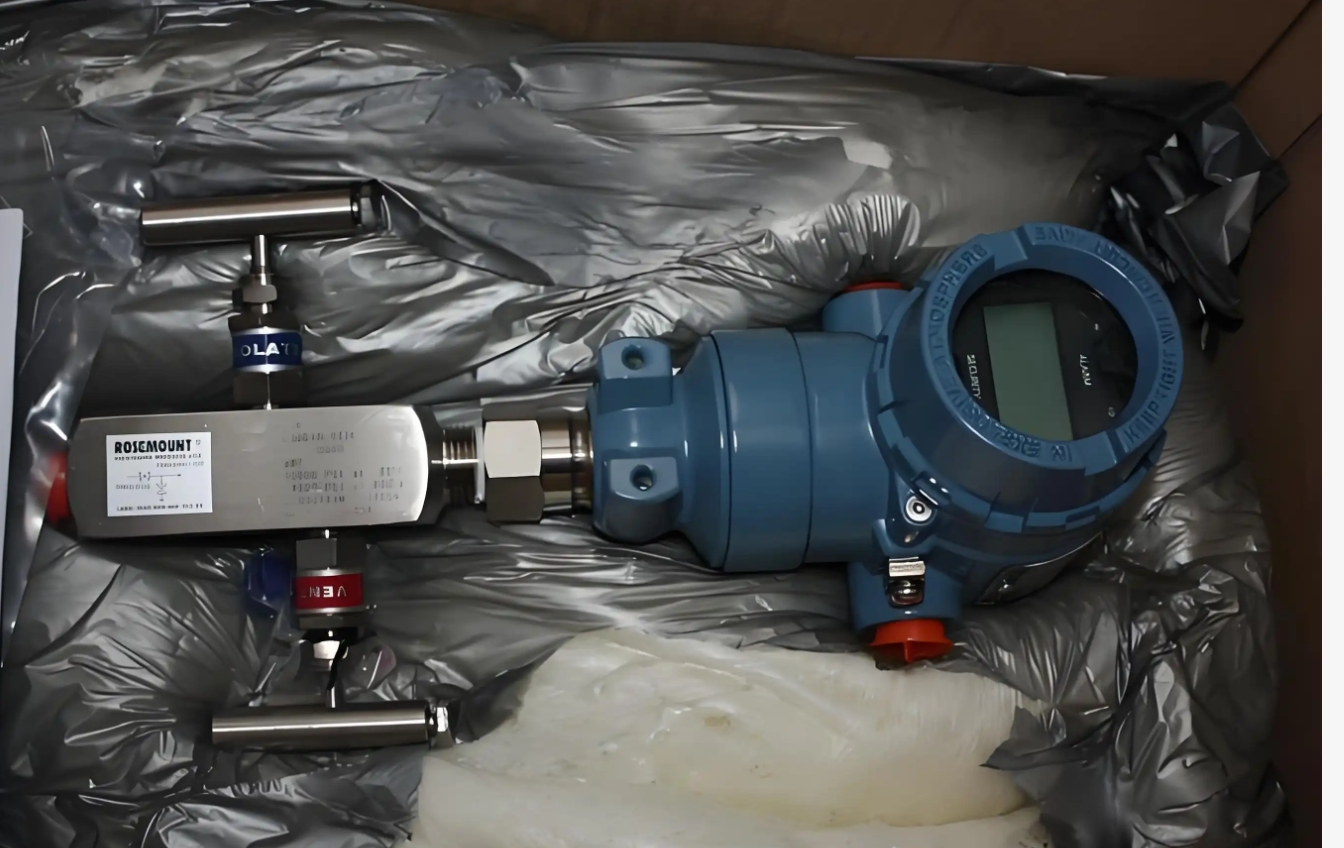

Rosemount 2051CD Pressure Transmitter
2. It has been fully assembled into the manifold, valve diaphragm seal or primary flow element and can be installed directly.
3. The menu of the local operator interface is easy to use, with built-in configuration buttons for simplified debugging.
4. SIL 2/3 certification, in compliance with IEC 61508 (certified by a third party) and the prior use certificate of FMEDA data for safe installation.
5. A flow solution composed of multiple primary components, which has undergone factory leakage testing and calibration, simplifies installation.
Rosemount 2051CD Pressure Transmitter - Professional Differential Pressure Solution
The Rosemount 2051CD Pressure Transmitter stands as a foundational differential weight estimation gadget that changes how businesses approach level, stream, and weight checking. Built on Emerson's industry-leading Coplanar™ stage, this differential weight transmitter conveys uncommon unwavering quality and exactness for your basic prepare applications. You'll advantage from its progressed capacitive sensor innovation that changes over weight differentials into standard 4-20 mA HART, FOUNDATION™ Fieldbus, or PROFIBUS® Dad advanced signals with exactness you can trust.
Why Choose Our Differential Pressure Transmitter?
You're looking for more than reasonable another weight estimation contraption. You require a course of action that addresses veritable mechanical challenges. Our weight transmitter apportions with up to 50% of spill centers compared to ordinary drive channeling setups. This infers less back cerebral torments and moved forward system unflinching quality for your operations.
The device's capacity to facilitated direct with manifolds, basic components, and stomach seals improves your foundation handle through and through. You'll save time, lessen costs, and minimize potential dissatisfaction centers in your estimation system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Reference Accuracy | ±0.065% of span (standard) |
| Rangedown Capability | 100:1 turndown ratio |
| Long-term Stability | ±0.10% of URL for 2 years |
| Communication Protocols | 4-20 mA HART, FOUNDATION Fieldbus, PROFIBUS PA |
| Wetted Materials | 316L SST, Alloy C-276, Tantalum |
| Safety Certification | SIL 2/3 (IEC 61508) |
| Environmental Standards | NACE MR0175/ISO 15156 |
| Hazardous Area Approvals | FM, CSA, ATEX, IECEx |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Process Temperature | Up to 400°F (204°C) standard |
Key Product Advantages
Direct Prepare Mounting: The Coplanar plan empowers you to mount the transmitter specifically to your handle. This diminishes establishment weight, tallness, and complexity whereas moving forward estimation accuracy.
Simplified Arrangement: The Neighborhood Administrator Interface (LOI) with built-in setup buttons makes investigating and setup clear. You won't require complex outside apparatuses for essential commissioning tasks.
Superior Erosion Resistance: Numerous wetted fabric alternatives secure your speculation in challenging chemical situations. Select from 316L stainless steel for common applications or extraordinary amalgams for serious benefit conditions.
Enhanced Security Highlights: SIL 2/3 certification guarantees compliance with IEC 61508 guidelines. Your safety-instrumented frameworks meet the most noteworthy industry necessities for useful safety.
Reduced Support Overhead: Plant spill testing and calibration of total stream arrangements minimize field establishment time. Pre-assembled setups decrease your designing and commissioning workload.
Primary Applications
Custody Transfer Flow Measurement: In oil and gas operations, the Rosemount 2051CD Pressure Transmitter pairs perfectly with orifice plates or averaging pitot tubes. You'll achieve the high accuracy needed for fiscal measurement while maintaining reliability under high static pressure conditions.
Tank Level Checking: For chemical preparing applications including destructive or thick media, this transmitter exceeds expectations as portion of a inaccessible seal get together. It calculates level by measuring hydrostatic weight contrasts between fluid head and vapor space with remarkable precision.
Filter and Pump Checking: Water and wastewater treatment offices depend on this gadget to screen differential weight over channel banks and pumps. Rising weight signals demonstrate channel clogging, empowering programmed discharge cycles that avoid pump cavitation and optimize vitality efficiency.
Contact Us
Ready to improve your pressure measurement reliability? The Rosemount 2051CD Pressure Transmitter offers the proven performance and support you need for critical applications. Our team stands ready to help you select the right configuration and provide ongoing support throughout your equipment's lifecycle.
