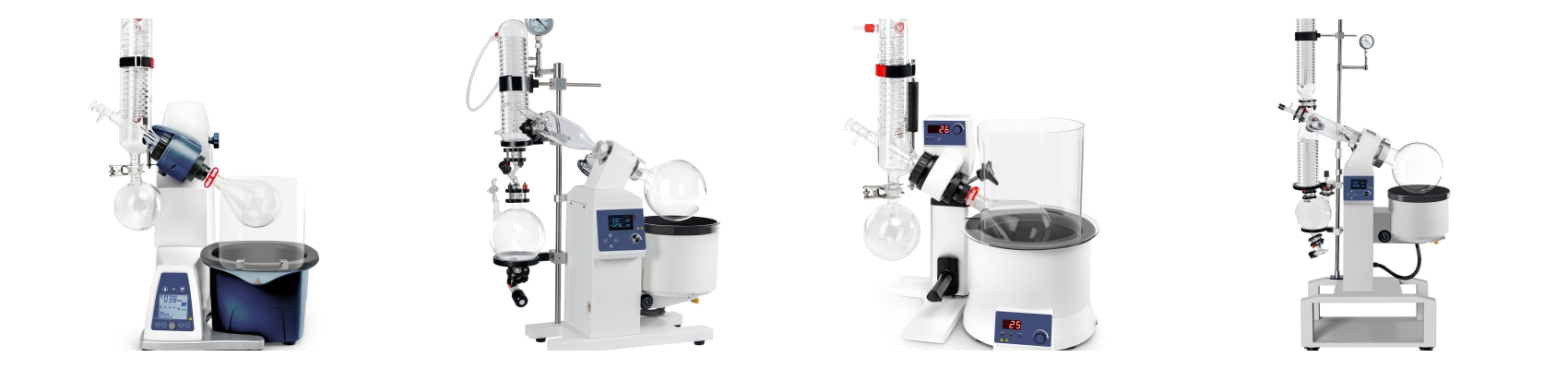

Small Rotary Evaporator
2.Excellent air tightness, High vacuum performance.
3.PTFE and Viton double sealing.
4.Easy assembling design to be assembled.
5.Double layer cooling coils for improving condensers performance.
6.Supports OEM and ODM.
7.CE, ISO, UL, SGS certification.
8.1 year warranty and quality commitment.
9. PLC fully automatic is optional.
10.Explosion-proof system is optional.
Small Rotary Evaporator - Precision Laboratory Distillation Equipment
Why Choose Our Small Rotary Evaporator for Your Laboratory?
When you require effective dissolvable evacuation without compromising test keenness, our Small Rotary Evaporator conveys extraordinary execution for your investigate applications. This accuracy refining instrument works beneath decreased weight, permitting you to dissipate solvents at lower temperatures whereas avoiding warm debasement of heat-sensitive compounds. Our compact plan maximizes your research facility space whereas giving the unwavering quality and precision you request for pharmaceutical testing, scholastic investigate, and R&D applications.
Advanced Features That Set Us Apart
Integrated Plan Excellence
Our framework combines the have unit, radiator, chiller, and vacuum pump in one streamlined bundle. You get great discuss snugness and tall vacuum execution through our PTFE and Viton twofold fixing framework. The simple gathering plan implies you can set up rapidly and begin working immediately.
Superior Execution Components
- Double layer cooling coils upgrade condenser execution for quicker dissolvable recovery
- Brushless DC engine guarantees calm operation and amplified lifespan
- LED show gives clear checking of speed, temperature, and time
- Clockwise and counterclockwise revolution optimizes vanishing efficiency
Safety and Security Features
Your security is our need. The unit incorporates overheating assurance, chemical resistance, and stun retention innovation for calmer research facility operation. Simple dismantling and cleaning make upkeep helpful and hassle-free.
Technical Specifications
| Parameter | Specification |
|---|---|
| Evaporating Flask Volume | 50-3000mL (Optional thickened glass axis compatible with 3L flask) |
| Motor Type | Brushless DC motor |
| Speed Range | 20-200 rpm |
| Display | LED (speed, temperature, time) |
| Rotation Direction | Clockwise and counterclockwise |
| Heating Temperature Range | Room temperature to 180℃ |
| Control Accuracy | Water: ±1℃, Oil: ±3℃ |
| Evaporation Capacity | Max. 1.56L/h (H₂O) |
| Heating Power | 1200W |
| Lift Stroke | Manual 110mm + auxiliary 100mm |
| Interval Time Setting | 1-999s |
| Main Unit Dimensions | 440×320×450mm |
| Heating Bath Dimensions | 300×300×240mm |
| Weight | Main Unit: 7kg, Heating Bath: 3kg |
| Operating Temperature | 5-40℃ |
| Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100-120/200-240V, 50/60Hz |
| Total Power | 1245W |
Quality Assurance You Can Trust
International Standards Compliance
Our Small Rotary Evaporator meets CE, ISO, UL, and SGS certification standards. With 20 years of manufacturing experience, we ensure every unit undergoes rigorous quality control testing including vacuum leak rate tests and temperature control accuracy verification.
Material Excellence
The core glassware uses High Borosilicate Glass 3.3 for superior chemical resistance and thermal stability. Our PTFE and Viton sealing systems maintain vacuum pressures below 10 mbar for optimal performance.
Customization and Support Services
Flexible Solutions
We understand that different laboratories have unique requirements. Our ODM/OEM capabilities allow us to customize units according to your specific needs and local regulations. Optional features include:
- PLC fully automatic control system
- Explosion-proof system for hazardous environments

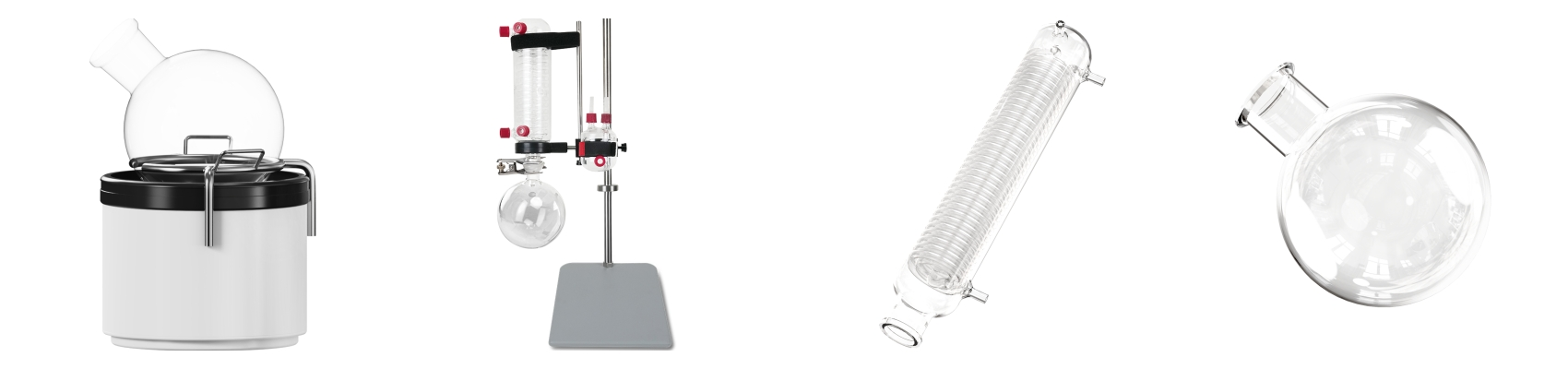

- Various flask sizes and configurations
Comprehensive Support
When you choose our rotary evaporator, you receive:
- 24-hour response time for technical inquiries
- 12-month warranty covering parts and labor
- Video installation guidance within 12 hours
- Complete installation documentation and training materials
Fast Delivery and Shipping Options
We maintain ready stock for immediate delivery. Our integrated transportation system includes sea freight, land transport, air freight, and express delivery options to ensure your equipment arrives quickly and safely.
Why WIN LINK STAR TECHNOLOGY?
As a professional laboratory equipment supplier with our own factory in China, we provide complete independent supply chain management. Our expertise spans rotary evaporators, spray dryers, and flow meters, serving research institutions, universities, and enterprise R&D departments worldwide.
Our one-stop customized solutions cover everything from initial design consultation through installation, commissioning, and ongoing maintenance support. This comprehensive approach helps you improve research efficiency and accelerate the transformation of your research achievements.
Contact Us
Ready to enhance your laboratory's capabilities with our Small Rotary Evaporator? Contact our technical team at info@winlinklab.com to discuss your specific requirements and receive a customized quote. We're here to support your research success with reliable, high-performance laboratory equipment.
