Rotary Vane Type Vacuum Pump
2.Equipped with gas ballast valve, can extract small amount of water vapor.
3.Main product series used: chemical synthesis reactor, high pressure reactor, rotary evaporator, etc
4.Supports OEM and ODM.
5.CE, ISO, UL certification.
6.1 year warranty and quality commitment.
Professional Rotary Vane Type Vacuum Pump - High-Performance Laboratory Solution
Our Rotary Vane Type Vacuum Pump delivers exceptional performance with proven reliability. This advanced pump technology utilizes an eccentrically mounted rotor with sliding vanes to create consistent vacuum levels for demanding applications. Whether you're working in chemical synthesis, analytical instrumentation, or research environments, this pump provides the stable performance you need. With over 20 years of manufacturing experience, WIN LINK STAR TECHNOLOGY delivers quality equipment that meets international standards.
What Makes Our Vacuum Pump Special?
Compact Plan, Greatest Performance
Our pump highlights a strikingly compact plan without compromising control. The lightweight development makes establishment simple whereas keeping up vigorous execution. You'll appreciate the moo commotion operation that makes a comfortable working environment.
Advanced Gas Counterweight Technology
The coordinates gas counterweight valve sets this pump separated from standard models. This highlight permits you to extricate little sums of water vapor securely. It anticipates oil defilement and expands pump life significantly.
Superior Construct Quality
Every component meets strict quality benchmarks. The pump lodging gives fabulous toughness for persistent operation. Premium materials guarantee long-term unwavering quality in challenging conditions.

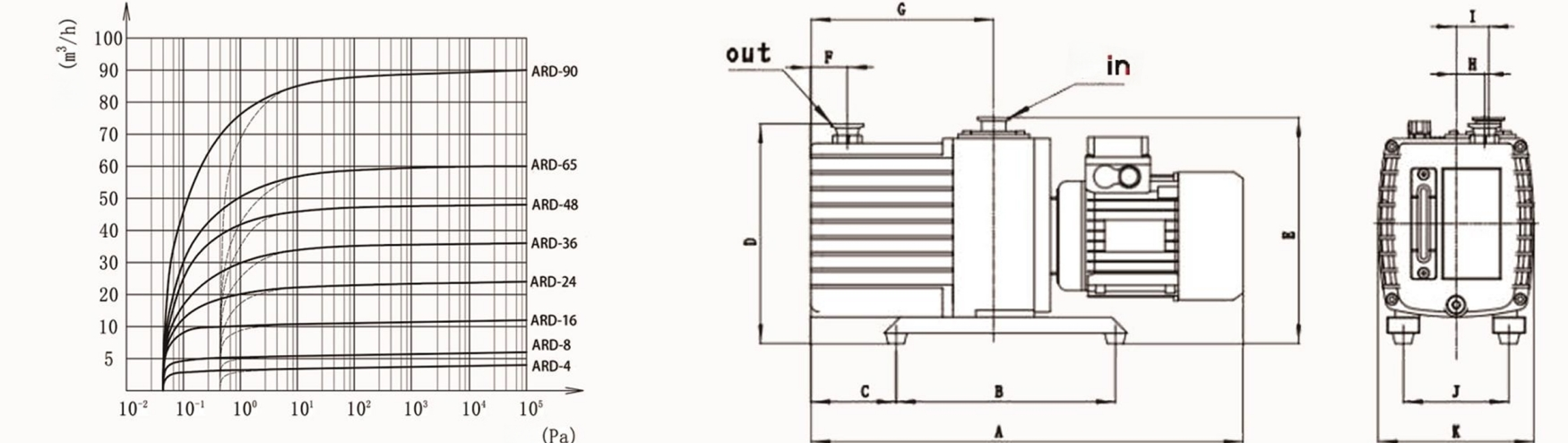

Technical Specifications
| Parameter | Value |
|---|---|
| Pumping Speed (50Hz) | 24 m³/h |
| Pumping Speed (60Hz) | 28 m³/h |
| Motor Speed (50Hz) | 1440 r/min |
| Motor Speed (60Hz) | 1720 r/min |
| Ultimate Partial Pressure (Gas ballast closed) | 5×10⁻² Pa |
| Ultimate Total Pressure (Gas ballast closed) | 5×10⁻¹ Pa |
| Ultimate Total Pressure (Gas ballast opened) | 10 Pa |
| Power Supply | Single-phase/Three-phase |
| Power | 0.75 KW |
| Protection Class | IP54 |
| Inlet/Exhaust Interface | 25KF |
| Oil Capacity | 2L |
| Temperature Rise | ≤ 45℃ |
| Noise Level | ≤ 58dB |
| Weight | 40Kg |
| Overall Dimensions | 530×195×280mm |
Key Applications
Laboratory Equipment Integration
This Rotary Vane Type Vacuum Pump works perfectly with chemical synthesis reactors and high-pressure reactors. It provides consistent vacuum levels for rotary evaporators and distillation systems. Research facilities rely on its stable performance for critical experiments.
Analytical Instrumentation Support
Mass spectrometry systems benefit from the pump's stable vacuum performance. It serves as an excellent backing pump for turbomolecular pumps. The low vibration design prevents interference with sensitive instruments.
HVAC and Refrigeration Systems
Professional technicians choose this pump for deep evacuation procedures. It efficiently removes moisture and non-condensable gases from refrigeration systems. The robust design handles demanding field conditions.
Outstanding Advantages
Steady Vacuum Execution - Accomplishes tall extreme vacuum levels reliably. The pump keeps up execution indeed amid amplified operation periods.
Continuous Tall Pumping Speed - Conveys solid pumping capacity at both tall and moo weights. This consistency guarantees prepare reliability.
Quiet Operation - Progressed plan minimizes clamor and vibration. Your work environment remains comfortable and professional.
Easy Upkeep - Straightforward plan diminishes upkeep complexity and costs. Schedule benefit methods are clear and quick.
Fast Conveyance - We keep up spot stock for quick shipment. Your extend timelines remain on track with our productive conveyance system.
Excellent Esteem - Competitive estimating without compromising quality. You get professional-grade execution at a sensible cost.
Quality You Can Trust
Our fabricating office keeps up strict quality control guidelines. Each pump experiences comprehensive testing some time recently shipment. CE, ISO, and UL certifications guarantee worldwide compliance.
We give total documentation with each unit. Establishment guides and specialized determinations back simple setup. Our quality commitment incorporates a full 12-month warranty.
Professional Support Services
24-Hour Reaction - Our specialized group reacts to request instantly. You get the back you require when you require it.
Installation Direction - We give video establishment bolster inside 12 hours. Our specialists direct you through the setup handle remotely.
Customization Alternatives - ODM and OEM administrations adjust the pump to your particular prerequisites. Distinctive nations and applications get custom fitted solutions.
Global Shipping - Coordinates transportation choices incorporate ocean, arrive, discuss, and express conveyance. We handle coordinations for helpful and quick shipping.
Why Choose WIN Link STAR TECHNOLOGY?
With 20 a long time of fabricating encounter, we get it research facility hardware prerequisites. Our total supply framework guarantees steady quality and accessibility. We back inquire about educate, colleges, and undertaking R&D offices worldwide.
Our one-stop arrangement approach covers everything from plan to after-sales benefit. We offer assistance move forward your inquire about effectiveness and bolster fruitful venture results.
Contact Us
Ready to enhance your laboratory capabilities with a Rotary Vane Type Vacuum Pump? Contact our team at info@winlinklab.com for detailed specifications and pricing. We're here to help you find the perfect vacuum solution for your specific needs.
