Rotary Vane Deep Vacuum Pump
2.Equipped with gas ballast valve, can extract small amount of water vapor.
3.Main product series used: chemical synthesis reactor, high pressure reactor, rotary evaporator, etc
4.Supports OEM and ODM.
5.CE, ISO, UL certification.
6.1 year warranty and quality commitment.
Rotary Vane Deep Vacuum Pump: Professional Laboratory Solution
When you require solid profound vacuum execution for your research facility applications, our Rotary Vane Deep Vacuum Pump conveys uncommon comes about with demonstrated building brilliance. This precision-engineered positive relocation gadget evacuates gas atoms from fixed volumes, accomplishing profound vacuum ranges ordinarily between 1×10⁻³ and 1×10⁻⁴ Torr. With 20 a long time of fabricating encounter and worldwide certifications, WIN Connect Innovation gives the vacuum arrangement your inquire about demands.
What Makes Our Deep Vacuum Pump Special?
Our vacuum pump stands out in today's competitive research facility hardware advertise. You get a compact, lightweight plan that works discreetly whereas conveying steady execution. The coordinates gas counterweight valve handles water vapor proficiently, making it culminate for requesting applications.
Key Highlights That Advantage You:
- Compact Plan: Space-saving arrangement for active laboratories
- Low Clamor Operation: Keeps up a serene working environment at ≤58dB
- Water Vapor Dealing with: Gas balance valve oversees dampness effectively
- Versatile Applications: Culminate for chemical union reactors and rotational evaporators
- International Measures: CE, ISO, and UL certified for worldwide compliance

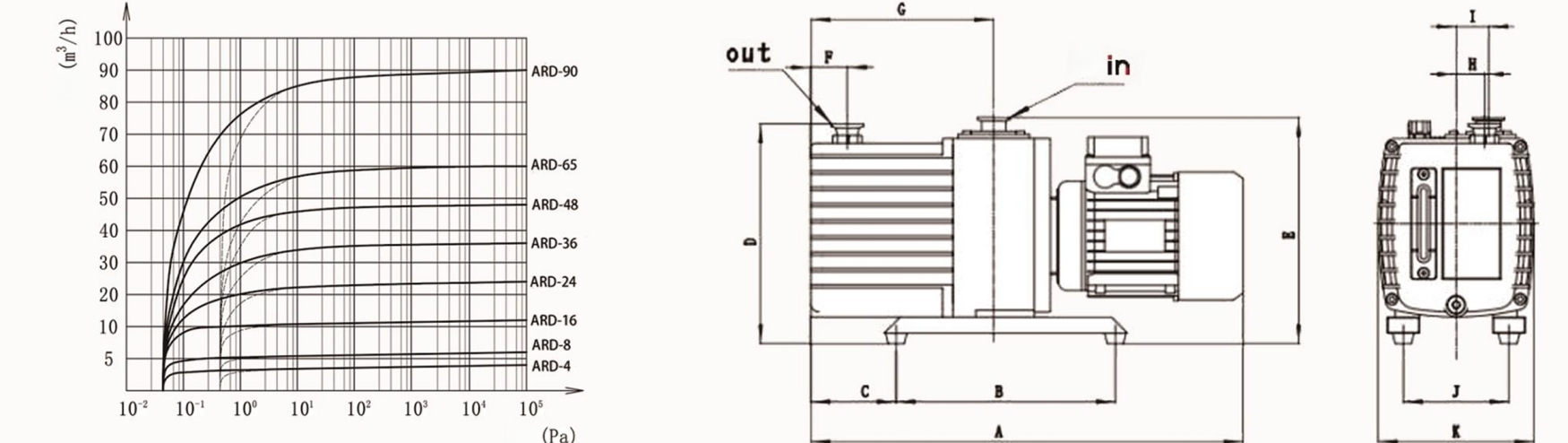

Technical Specifications
| Parameter | 50Hz | 60Hz |
|---|---|---|
| Pumping Speed | 16 m³/h | 19.2 m³/h |
| Motor Speed | 1,440 r/min | 1,720 r/min |
| Ultimate Partial Pressure (Gas ballast closed) | 5×10⁻² Pa | 5×10⁻² Pa |
| Ultimate Total Pressure (Gas ballast closed) | 5×10⁻¹ Pa | 5×10⁻¹ Pa |
| Ultimate Total Pressure (Gas ballast open) | 10 Pa | 10 Pa |
| Power | 0.55 KW | 0.55 KW |
| Protection Class | IP54 | IP54 |
| Interface | 25KF (Inlet/Exhaust) | 25KF (Inlet/Exhaust) |
| Oil Capacity | 1.2L | 1.2L |
| Weight | 25 kg | 25 kg |
| Dimensions | 503×162×262 mm | 503×162×262 mm |
| Noise Level | ≤58 dB | ≤58 dB |
Why Choose Our Vacuum Solution?
Stable Performance You Can Trust
Our Rotary Vane Deep Vacuum Pump maintains high ultimate vacuum levels consistently. The dual-stage mechanism ensures your applications achieve the deep vacuum required for sensitive processes like freeze drying and vacuum distillation.
Continuous Operation Capability
You benefit from sustained high pumping speed, even at low pressures. This reliability keeps your research moving forward without interruption.
Cost-Effective Maintenance
Simple maintenance procedures reduce your operational costs. The straightforward design means less downtime and more productive research time.
Fast Delivery When You Need It
We maintain spot stock for immediate shipment. Your project timelines stay on track with our efficient logistics network supporting sea, land, air, and express delivery options.
Applications Across Industries
Laboratory Research
Perfect for chemical synthesis reactors where precise vacuum control matters. Researchers use our pumps for:
- Vacuum distillation processes
- Solvent removal applications
- Chemical reaction environments requiring inert conditions
HVAC and Refrigeration
Commercial service technicians rely on our deep vacuum capability for:
- Large-tonnage chiller evacuation
- VRF system dehydration
- Preventing compressor failure through complete moisture removal
Manufacturing Processes
Industrial applications benefit from:
- Composite vacuum infusion
- Resin degassing operations
- Quality control in aerospace manufacturing
Our Commitment to Quality
WIN LINK TECHNOLOGY brings two decades of manufacturing expertise to every vacuum pump. Our complete independent supply system ensures consistent quality control from design to delivery.
Certifications You Can Count On:
- CE Marking: European conformity standards
- ISO Compliance: International quality management
- UL/ETL Listed: North American safety standards
Service Support That Works:
- 24-hour response time for technical questions
- 12-month comprehensive warranty coverage
- Video installation guidance within 12 hours
- Complete installation documentation package
Customization Options
We understand that different applications require specific solutions. Our ODM/OEM capabilities adapt our product technology to meet your unique requirements. Whether you need modified interfaces, specialized materials, or custom control systems, our engineering team collaborates with you to create the perfect solution.
Technical Advantages
The rotary vane design provides excellent compression ratios for effective gas ejection. Our gas ballast valve prevents vapor condensation in the oil, maintaining pump performance over time. The anti-suck back valve protects your system during power failures.
Quality manufacturing follows DIN 28400 standards for measuring pumping speed and ultimate pressure. ISO 9001 adherence ensures rotor and stator tolerances remain within precise specifications.
Ready to Enhance Your Laboratory?
Our Rotary Vane Deep Vacuum Pump represents the perfect balance of performance, reliability, and value for your laboratory applications. With proven technology, comprehensive support, and immediate availability, you get the vacuum solution that moves your research forward.
Contact our technical team today at info@winlinklab.com to discuss your specific vacuum requirements. Let us help you select the ideal configuration for your applications and experience the WIN LINK TECHNOLOGY difference in laboratory equipment excellence.
