Rotary Vane Air Pump
2.Equipped with gas ballast valve, can extract small amount of water vapor.
3.Main product series used: chemical synthesis reactor, high pressure reactor, rotary evaporator, etc
4.Supports OEM and ODM.
5.CE, ISO, UL certification.
6.1 year warranty and quality commitment.
Rotary Vane Air Pump - Professional Laboratory Vacuum Solution
Our Rotary Vane Air Pump conveys extraordinary execution with steady vacuum levels and calm operation. This progressed positive uprooting pump utilizes an unpredictably mounted rotor with sliding vanes to make extending and contracting chambers. Not at all like conventional cylinder pumps, our item disposes of stream throb whereas guaranteeing smooth pneumatic movement. With over 20 a long time of fabricating involvement, WIN Connect Innovation gives you with tried and true vacuum arrangements that meet worldwide quality standards.
What Makes Our Vacuum Pump Special?
Advanced Plan Features
Our vacuum pump joins cutting-edge innovation to address your most challenging applications. The self-lubricating vane framework decreases support prerequisites whereas amplifying operational life. You'll appreciate the adjusted rotational elements that minimize acoustic contamination in your workspace.
The gas balance valve empowers effective extraction of little sums of water vapor. This highlight demonstrates priceless when working with moisture-sensitive forms or muggy environments.
Superior Execution Characteristics
Experience steady vacuum execution with tall extreme vacuum capabilities. Our pump keeps up ceaseless tall pumping speeds indeed at moo weight conditions. The multi-vane setup conveys pulsation-free operation, basic for exactness expository instrumentation.
Temperature soundness remains reliable between -10°C and 40°C surrounding conditions. High-quality seals and aluminum combination warm sinks guarantee solid execution over shifting natural conditions.

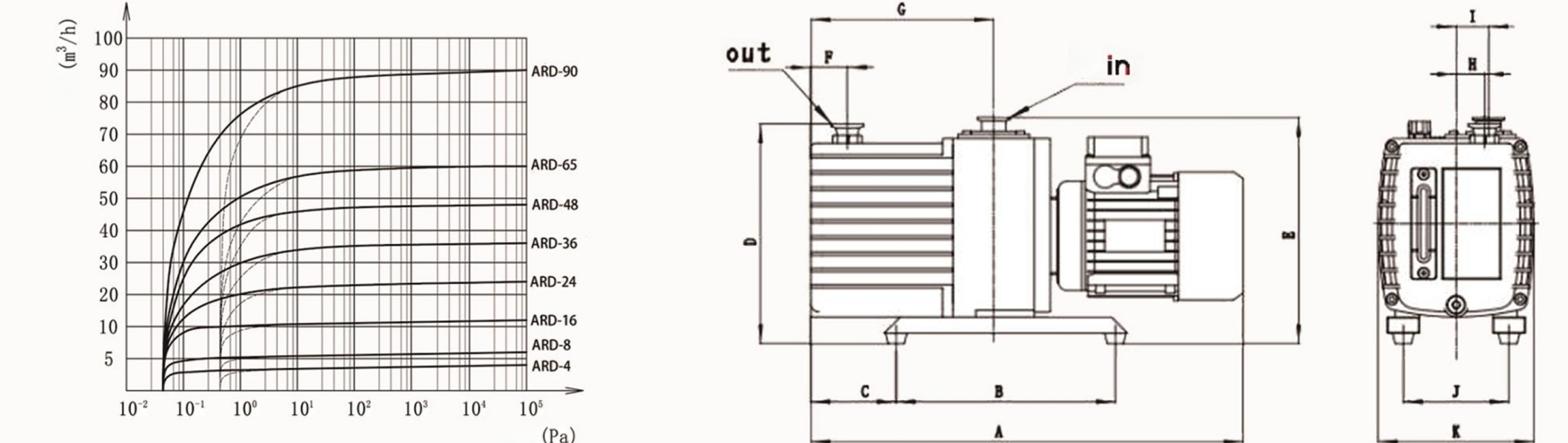

Technical Specifications
| Parameter | Specification |
|---|---|
| Pumping Speed (50Hz) | 4 m³/h |
| Pumping Speed (60Hz) | 4.8 m³/h |
| Motor Speed (50Hz) | 1440 r/min |
| Motor Speed (60Hz) | 1720 r/min |
| Ultimate Partial Pressure (Gas Ballast Closed) | 5×10⁻² Pa |
| Ultimate Total Pressure (Gas Ballast Closed) | 5×10⁻¹ Pa |
| Ultimate Total Pressure (Gas Ballast Opened) | 10 Pa |
| Power Supply | Single-phase/Three-phase |
| Power | 0.4 KW |
| Protection Class | IP54 |
| Inlet and Exhaust Interface | 25KF |
| Oil Capacity | 0.9L |
| Pump Oil Temperature Rise | ≤ 45℃ |
| Noise Level | ≤ 55dB |
| Weight | 20Kg |
| Overall Dimensions | 481×162×254mm |
Key Applications
Laboratory Equipment Integration
Our Rotary Vane Air Pump works seamlessly with chemical synthesis reactors, high-pressure reactors, and rotary evaporators. The compact design fits easily into existing laboratory setups without requiring significant space modifications.
Industrial Processing
Perfect for vacuum packaging, CNC clamping systems, and environmental gas analysis equipment. The dry-running capability prevents oil contamination in sensitive applications.
Medical Applications
Low noise operation makes it suitable for medical negative pressure wound therapy systems. Continuous operation reliability ensures patient safety during extended treatment cycles.
Why Choose Our Vacuum Pump?
Quality Assurance
Every unit meets CE, ISO, UL, and ETL international standards. Our comprehensive quality control includes ultimate vacuum testing, rotor-stator eccentricity verification, and thermal rise testing. You receive equipment that performs reliably from day one.
Service Excellence
We provide 24-hour response support with 12-month warranty coverage. Installation guidance includes systematic documentation and video support within 12 hours when needed. Our technical team understands your operational requirements.
Delivery Advantage
Stock availability ensures fast shipment through integrated air, sea, land, and express transportation options. You won't experience delays that impact your project timelines.
Customization Capability
ODM and OEM services accommodate specific requirements for different countries and applications. We work with you to develop solutions that match your exact specifications.
Maintenance Made Simple
The self-wear compensation design means sliding vanes naturally adjust to cylinder walls as they wear. This maintains seal integrity and performance longer than fixed-tolerance alternatives. Simple maintenance procedures reduce operational costs and minimize downtime.
Regular oil changes and basic cleaning keep your product running smoothly. Clear documentation guides you through routine maintenance steps.
Get Started Today
Ready to enhance your laboratory or industrial operations? Our experienced team helps you select the right vacuum solution for your specific needs. With proven reliability and excellent cost performance, our Rotary Vane Air Pump delivers the consistent results you demand.
Contact us at info@winlinklab.com to discuss your requirements. We'll provide detailed technical consultation and competitive pricing for your vacuum pump needs. Join countless satisfied customers who trust WIN LINK TECHNOLOGY for their laboratory equipment solutions.
