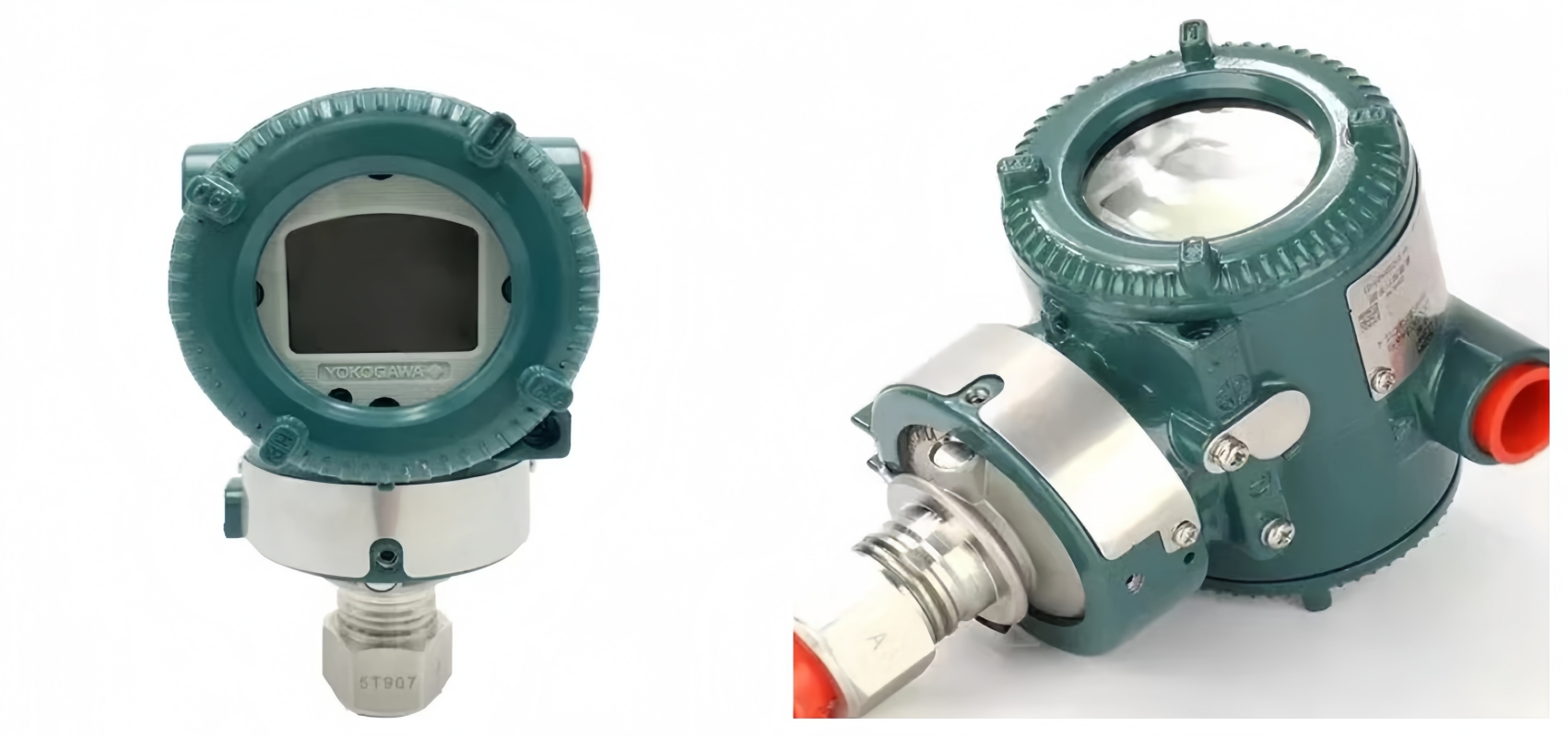

Yokogawa EJX530A Pressure Transmitter
2.Output 4~20mA DC current signal.
3.Fast response, remote setup and monitoring.
4.Diagnostic functions: high/low pressure alarm output.
5.Multi-sensing technology detects anomalies. FF fieldbus type is available.
6.TÜV certified and meets SIL 2 safety requirements.
Yokogawa EJX530A Pressure Transmitter - Premium Digital Gauge Pressure Measurement Solution
The high performance absolute and gauge pressure transmitter EJX510A and EJX530A feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJX510A and EJX530A output a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications, diagnostics, and optional status output for pressure high/low alarm. The multisensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Reference Accuracy | ±0.04% of Span |
| Long-term Stability | ±0.1% of URL per 15 years |
| Response Time | 90 milliseconds |
| Turndown Ratio | 100:1 |
| Output Signal | 4-20mA DC current |
| Digital Communication | HART, FOUNDATION Fieldbus, PROFIBUS PA |
| Housing Protection | IP66/IP67 rated |
| Wetted Materials | Hastelloy C-276, 316L SST, Monel, Tantalum |
| Safety Certification | TUV certified SIL 2/3 per IEC 61508 |
| Maximum Pressure Range | Up to 50 MPa (7200 psi) with 'D' capsule |
Product Features:
1. ± 0.04% Accuracy.
2. ± 0.1% per 15 years Stability.
3. 90 ms Response Time.
4. Exida and TUV SIL 2/3 Certified.
5. Local Parameter Setting (LPS).
Packaging and Transportation:
The Ejx530a Yokogawa is packaged with the utmost care to ensure that it arrives at its destination in perfect condition. Each unit is securely enclosed within protective materials to prevent any damage during transit. We adhere to strict packaging standards and utilize reliable transportation methods to deliver your product safely and efficiently.
Contact Us
Ready to enhance your pressure measurement capabilities with the Yokogawa EJX530A Pressure Transmitter? Contact our technical team at info@winlinklab.com for detailed specifications and customization options. Let us help you select the perfect configuration for your specific application requirements.
