Ready to improve your Rosemount 8705 Flange Type Electromagnetic Flowmeter Sensor flow measurement accuracy and reduce maintenance costs? Contact our technical specialists at info@winlinklab.com for application-specific recommendations and detailed quotations. We'll help you select the optimal configuration for your process requirements.
Rosemount 8705 Flange Type Electromagnetic Flowmeter Sensor
1. Accuracy up to 0.15% volume flow accuracy at 13:1 flow range ratio and 0.25% at 40:1 flow range ratio
2. Pipeline specification 15-900mm (½ -36in)
3. Lining materials PTFE, ETFE, PFA, polyurethane, neoprene rubber, linolenic ester natural rubber
3. Electrode material 316L stainless steel, nickel alloy, platinum, tantalum, titanium
6. Flange grades ASME B16.5 150-2500 DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (only 30-36 inches)
7. Diving protection IP68 (sealed cable waterproof connector recommended)
8. Interchangeability Compatible with all transmitters of the 8700 series
2. Pipeline specification 15-900mm (½ -36in)
3. Lining materials PTFE, ETFE, PFA, polyurethane, neoprene rubber, linolenic ester natural rubber
3. Electrode material 316L stainless steel, nickel alloy, platinum, tantalum, titanium
6. Flange grades ASME B16.5 150-2500 DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (only 30-36 inches)
7. Diving protection IP68 (sealed cable waterproof connector recommended)
8. Interchangeability Compatible with all transmitters of the 8700 series

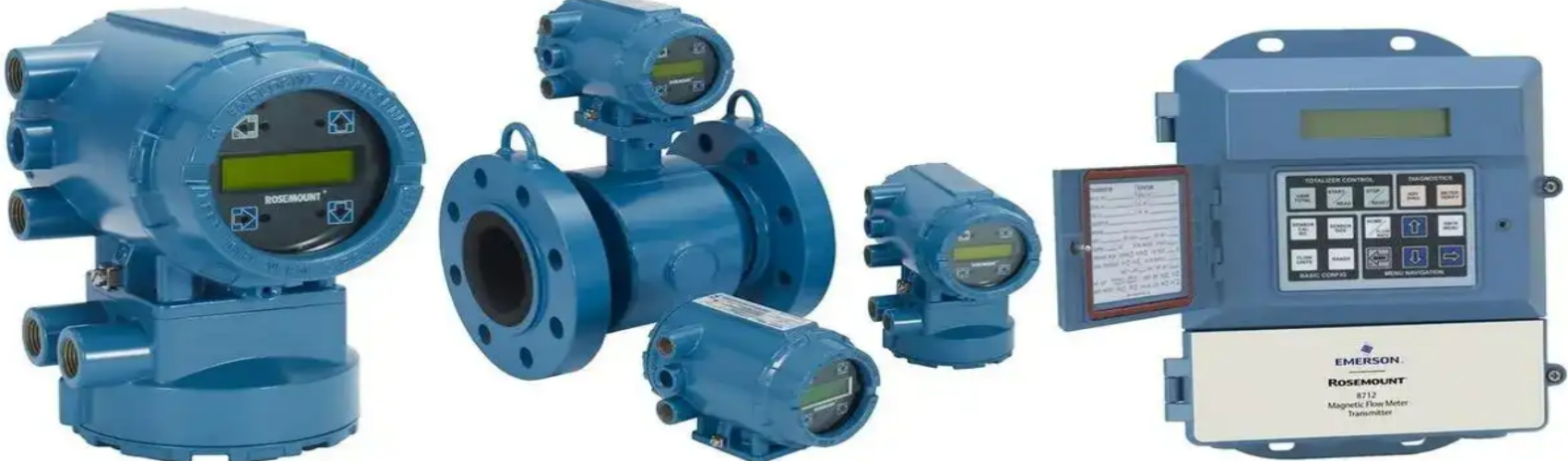

Rosemount 8705 Flange Type Electromagnetic Flowmeter Sensor
The Rosemount 8705 Flange Type Electromagnetic Flowmeter Sensor conveys remarkable exactness and unwavering quality utilizing electromagnetic acceptance innovation. This progressed sensor utilizes Faraday's Law to degree conductive fluid streams with negligible support necessities. Not at all like conventional mechanical meters, this electromagnetic flowmeter highlights an obstruction-free plan that dispenses with weight drop issues. You'll advantage from its all-welded lodging development that avoids dampness entrance and coil disappointment. The sensor works consistently with different transmitters to give exact stream information in requesting applications.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Accuracy | 0.15% volume flow at 13:1 range ratio; 0.25% at 40:1 range ratio |
| Pipeline Size | 15-900mm (½ -36 inches) |
| Lining Materials | PTFE, ETFE, PFA, Polyurethane, Neoprene rubber, Linolenic ester natural rubber |
| Electrode Materials | 316L stainless steel, Nickel alloy, Platinum, Tantalum, Titanium |
| Flange Standards | ASME B16.5 150-2500, DIN PN 10-40, AS 2129 Table D, AWWA C207 Table 3 Class D |
| Protection Rating | IP68 (with sealed cable waterproof connector) |
| Compatibility | All 8700 series transmitters |
| Temperature Range | Up to 350°F (177°C) depending on liner selection |
| Minimum Conductivity | 5 microSiemens/cm |
Product Features:
1. For complete protection, a fully welded Rosemount 8705 Flange Type Electromagnetic Flowmeter Sensor housing provides a closed seal
2. Use a removable, replaceable terminal to avoid process stops and enable on-site repairs
3. The electrode is also surrounded by an optional secondary containment that captures all potential process fluid leakage information
4. Fully welded sensor housing ensures reliable performance in particularly harsh environments
5. With optional lining protectors, installation damage and leading edge wear can be prevented.
6. An unobstructed design without any moving parts minimizes the need for maintenance and repair
Why Choose WIN LINK STAR TECHNOLOGY?
With 20 years of manufacturing experience, we understand your flow measurement challenges. Our comprehensive quality system ensures compliance with CE, ISO, UL, and ETL international standards.
We offer complete customization capabilities to meet your specific requirements. Whether you need special materials, unique configurations, or modified specifications, our ODM/OEM services deliver tailored solutions.
Our Service Commitment
- 24-hour response time for technical support
- 12-month warranty covering manufacturing defects
- Ready stock availability for faster delivery
- Comprehensive shipping options including sea, land, air, and express delivery
- Complete installation support with detailed documentation and video guidance
Technical Support and Quality Assurance
Every sensor undergoes rigorous testing including flow calibration traceable to NIST standards, hydrostatic pressure testing per ASME B16.5, and material verification for exotic alloy components.
Our quality control process includes dielectric strength testing and weld inspection using penetrant testing methods. This ensures the hermetic seal integrity that makes the product reliable in the most demanding applications.
